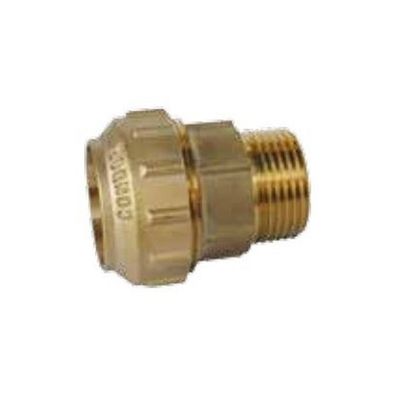

CONDOR - Brass Fitting For PE Pipe
For connecting or repairing PE pipes. Range of sizes from DN20 to DN90. Made from forged brass under the UNE EN 12165 standard. Controlled in accordance with the UNE-EN 712, UNE-EN 713, UNE-EN 715 and UNE-EN 911 standards. Operating pressure up to 25 bar (PN25). Gas threaded end (BSP) complying with the ISO228/1 standard, Operating temperature: -20º C to + 100º C.
Most popular related searches
PE pipe
water supply network
EN standard
water supply
PE pipe fitting
water network
pipe fitting
water network pipe
brass valve
pipe repair
- CONDOR brass fittings are mainly used for water supply networks using PE pipes.
- The fittings are easy to use and do not need complicated tools for installation.
- A rubber O-ring ensures watertightness.
- The O-ring seating structure allows adjustment for possible variations in the pipe’s exterior diameter.
- The fitting, once assembled, is easily detached and reused as there are no metal parts which may deform and damage the pipe.
- BODY: CW617N in accordance with UNE EN 12165
- SCREW: CW617N in accordance with UNE EN 12165
- JOINT: NBR
- DN75 and DN90 fittings have AISI304 stainless steel screws, nuts and washers.
