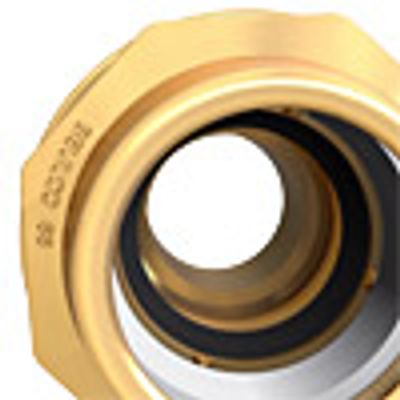

BEULCO - Model Series 88 -Brass - Fittings for Plastic Pipes Without Insert Pipe for Water

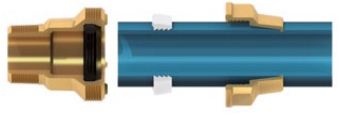

Brass - Fittings (series 88) for plastic pipes without insert pipe for water, with insert pipe for gas. The dual connector for water and gas: Because our designers have always felt that a good system should not necessarily require the use of special tools, the A3 product group is just the thing for those wishing to work quickly and affordably while saving space. And so you can maintain your independence the system is available without insert pipe - for water - and with insert pipe - for gas.
Most popular related searches
Separate sealing and clamping procedures produce a clear division of function. Moreocer pressure- controlled clamping means it is possible individually to adjust the degree of compression used.
For uncompromisingly good results: BEULCO A3.
- separate sealing and clamping function
- clamping force depends on the pressure
- insert pipe for gas
- no special tools required
- clear division of the function
- pressure loads adapt themselves
- permanent safety also for gas fast, economic, space-saving
- Material: thermally unstressed and dezincification resistant brass
- Type of pipe: PE, PE-Xa, PVC (with brass clamping ring)
- Nominal pressure: PE 80 (PN 12,5), PE 100 (PN 16), PE-Xa (PN 12,5)
- Dimensions: Ø 16 bis Ø 75 mm
- Application: cold and warm water up to 40° C
- Sonstiges: approval for application in the field of gas with gas change-over set
- Tested acc. to:
- DVGW VP 600 / DN 25 - DN 50 / DG-7522BQ0486
- DIN 8076-1 / DN 25 - DN 50 / DIN-DVGW DW-7511BR0042
- SVGW W/TPW 157 / DN 16 - DN 75 / SVGW 0203-K 253
- ÖVGW PW 300 DIN 8076-1 / DN 20 - DN 50 / ÖVGW W 1.464
