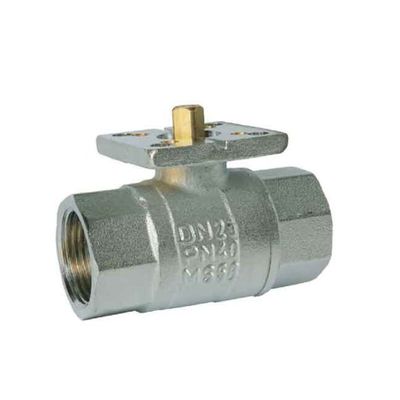

Johnson - Model JV090013 -Brass Nickel Plated Ball Valve

SHARE

Economical and versatile quarter turn ball valve with an ISO 5211 mounting pad enabling the valve to be fitted with various actuation options. Supplied without lever, can be supplied complete with lever, electric or pneumatic actuator on request.

Most popular related searches
ball valve
brass ball valve
quarter-turn ball valve
brass valve
pneumatic actuator
quarter turn valve
electric actuator
  • Type : Two-Piece, Full Bore, ISO 5211 Mount
  • Size & Connections : 6mm (1/4`) to 80mm (3") BSPP Female
  • Duty : Air, Gas, Oil, Water
  • Materials : Nickel Plated Brass Body, PTFE Seat, Chrome Plated Brass Ball
  • Pressure Rating : PN40
  • Temperature : 0°C to 120°C (Dependent on size & pressure)
