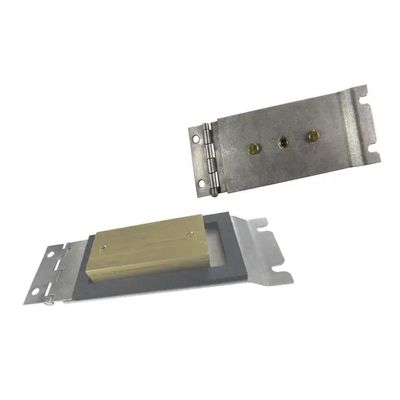

4B Group - Model RB2W4LR2 -Brass Rub Blocks Kit

A temperature sensor embedded in the brass block measures the heat, and the system triggers an alarm and shutdown once the temperature reaches a trip-point.

Typically, these sensors are installed in pairs on opposite sides of the machine to detect misalignment on both sides. They can be connected directly to a PLC input or, for enhanced safety, integrated with an independent monitoring system such as 4B’s T500 Elite Hotbus™, Watchdog™ Super Elite, or T400N Elite Hotswitch.

Inspection doors are available for easier periodic maintenance and testing of the brass rub block and system.

• Brass Rub Block Belt Misalignment Sensor
• Belt Misalignment Detection
• Simple Installation
• Solid Brass Construction (No Moving Parts)
• Temperature-Activated by Friction
• Applicable bearing sensors - not included in kit:
  ADB91MV3AI/D2 (4-20mA), ADB20V3CAI/D2 (NTC), ADB29V3CAI/D2 (PT100) & ADBMIL1V4C/D2 (4-20mA)
• External Sensor Testing Capability (ADB Tester)

• Belt Conveyor ,
• Bucket Elevator
