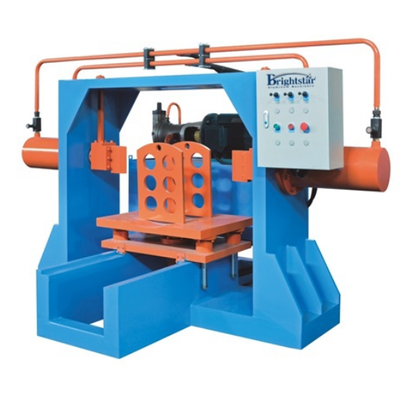

Brightstar - Model BS500 -Aluminum Extrusion Mold Disassembly Machine

Automatic mold disassembly machine, reduce the labor intensity of workers, and improve production efficiency.

It is suitable for the separation operation of the mandrel and die cap of the aluminum extrusion mold in the aluminum profile manufacturing industry.

Compared with the current manual hammering mold disassembly method commonly used in the industry, the application of this machine can greatly improve the efficiency of mold disassembly, reduce the labor intensity of workers, and the mold disassembly process is safe, stable and efficient, and can well avoid manual mold disassembly can cause injuries to people and molds due to workers` careless or fatigued operations.

It is indispensable and ideal equipment for standardizing safe production procedures in the aluminum profile processing and manufacturing industry.

In order to effectively improve the production capacity of the mold disassembly machine, the equipment uses a loading device to lift the mold, a flat roller to transport the mold, an automatic positioning and separation mold, and an automatic conveying platform to output the mold.

Each process (loading, mold disassembly, discharging) can be carried out at the same time, effectively improving production efficiency.

The mold disassembly process is safe, stable and efficient.

A high degree of automation, superior operating environment and high production efficiency.

Reduce work-related injuries:
The common practice is to use a sledgehammer to hit the chisel vvith gravity to separate the mold.
During the process, small iron filings often fly into the arms or legs, causing work-related injuries. Using an automatic mold disassembly machine can avoid work-related injuries.

Reduce workers` labor intensity:
An automated aluminum extrusion mold disassembly machine improves the working principle and changes the previous hard-working working environment.

Reduce the turnover rate of workers in the position:
In the past, people in this position needed to have the force, otherwise, the}` could not do the job, and the turnover of personnel was very high. With the use of automated equipment, workers can work easily and efficiently with only mechanized workers, ensuring the stability of job personnel.

• Model: BS500
• Max disassembly force: 380 kN
• Max working pressure: 2iMPa
• Diameter of mold: O16o ~ O500 mm
• Max height: 360 mm
• Minimum gap depth of mold: 10 mm
• The gap width of mold: 4 mm
• Height of stop pin: 25 mm
• Total power: (7.5+2.2) KW
• Power: 380 V
• Overall size: L*W*H: 2000 x 1200 x 2200 mm
• Weight: 3500 kg Approx.
