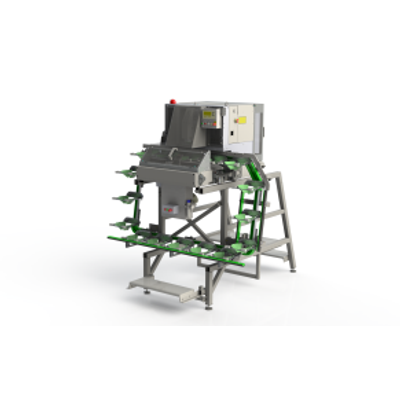

BrimaPack - Model VePack200-PHV -Vertical In-Feed System

A wider version with more cups can be supplied, so more persons can work on one unit. For the packhouse we have supplied versions with an in-feed section up to 3,5 meters (VePack PHV 26), suitable for up to 4 persons.

The VePack 200-PHV can be supplied stand alone, or as a multiple system solution with integrated logistics.

All systems can be supplied with labeling, stamping and/or printing. In combination with the vertical in-feed system, integrated grading (on weight and/or size) and film length optimization options can also be offered, ensuring that underweight products are not packed, thus saving on recall, labor and film costs.

Your advantages

• Maximum flexibility in the number of operators per machine.
• Optimal solution for pre-cleaning at the line.
• Optional integration of grading by weight (and/or size).
• Complete packing & handling solutions can be offered.

• Dimensions
• Length : 2225 mm
• Width : 2000-3500 mm
• Height : 2320 mm
• Weight : 250-300 kg
• Production :
• Max. capacity : 1100 pc/hour
• Electrical Details :
• Power supply : 230 VAC 50Hz+PE
• Power consumption : 1kW
• Pneumatic details :
• Air supply : 7 bar
• Air consumption : 125 NL/min
• Film specifications :
• Material : CPP-Film,
• Width : 450-600 mm
• Thickness : 12-17 µ
