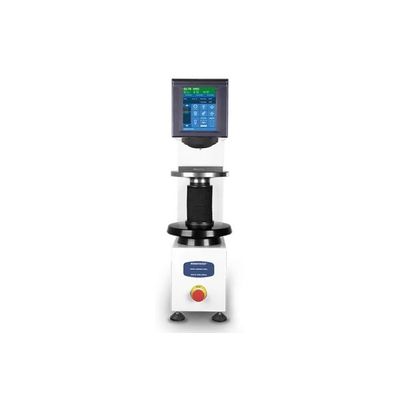

INNOVATEST - Model NEXUS 3100 -Brinell Hardness Tester

Automatic Brinell hardness tester with analogue microscope and touchscreen hardness calculator.

Most popular related searches

Scales: Brinell
Test Forces: 62.5kgf – 3000kgf
Microscope: Analogue microscope
Load App. System: Fully automatic, Load cell, closed loop, force feedback
Control/Display: I-TOUCH™, 6.5” industrial touchscreen
Software: No. of tests, Mean, St. Deviation, Min., Max., Range, CP, CPk, individual readings list, storage memory, Dwell time, test force setting, scale selection, etc.
Z-Axis: Manual or motorized
Clamp: Optional clamp to protect indenter and fix workpiece to anvil or stage
Workpiece Acc.: 220mm (H) X 220mm (D)
Anvils: Anvils, stages, accessories as per detailed catalogue

Specification
