Raptor - Model TC-N1 -Bristol Tank Cleaning Systems
The TC-N1 Tank Cleaning System efficiently removes deposits from highway trailers or rail tank cars using the proven jet-cleaning technique employed by other Bristol tank cleaning systems. The TCN1 features a sealed hatch mounting design that contains fumes or spray as the single jet-stream cuts hazardous deposits from the bottoms of trailers or rail cars. The system handles up to 250 gpm of wash solvent at pressures up to 250 psi to flush deposits out of the tank bottom drain. Slurries with heavy solids concentrations and corrosive liquids can be used for effective washing because the 1 ½ inch stainless piping is completely separate from the nozzle positioning actuators.

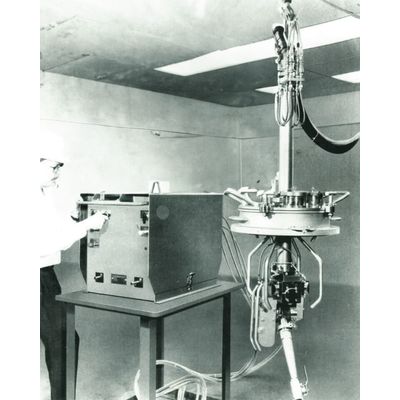

The TC-N1 Nozzle directs a concentrated jet-stream against deposits in the lower half of the tanks. Driven by rugged hydraulic actuators, the nozzle moves at a controlled speed across the length and width of the deposits, blasting them into a flowing slurry for gravity discharge. A carbide brushing in the nozzle tip resists wear, while a valve on the discharge prevents dripping of potentially hazardous materials. The TC-N1 Nozzle also offers the option to tilt 15° to either side of vertical. This allows the jet stream to clean behind vertical pipes in the tank. The height of the trunk section adjusts to accommodate different size tanks.
