BROILTECH - Model BT-HTFS-S.S-line -Helical Rotor Flow Meter And Sensor
BROILTECH Helical rotor positive displacement flow meter is approved by weight and measurement ( W&M) Legal metrology goverment of india for measuring oil and fuel other than water As per ( MID 005). Fully stainless steel Helical flow meters are positive displacement meters with a very favorable low pressure drop behavior. therefore perfectly suited for the flow measurement of very high viscosity fluids. Due to wide measuring ranges, high accuracy and resolution helical flow meters are an excellent choice for laminating systems, painting systems, adhesive dispense systems, as well as batching systems for various fluids.
Material of construction:
Enclosure : S.S-304/S.S-316

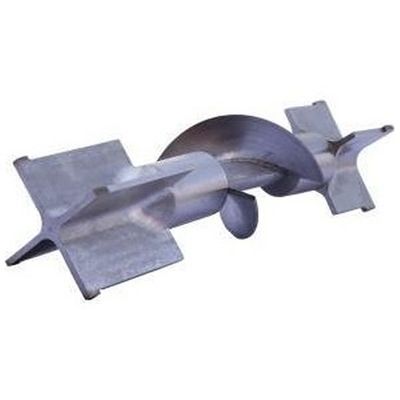

Rotor : S.S-304/Titanium/ Aluminum anodized
Shaft : Hard Stainless Steel-316 with carbon Bearing
Accuracy : +/- 0.5 or 1% FSD
Repeatability : 0.1%
Maximum working pressure: 6 MPa
Fluid &Ambient temperature: -20 to 120 Deg. C
Connection: Thread (M/F) or flange
1) Pulse output Helical flow sensor :
Power voltage: 12 V DC
Output signal: NPN open connector
Output:
high electric level : High than 8 VDC( input voltage 12 VDC)
low electric level : lower than 0.8 VDC( input voltage 12 VDC)
2) Battery operated helical flow meter :
Power voltage: 3.3 V10AH lithium batteries can be used more than 5 years in a row.
display mode:
Double row Liquid Crystal Display (LCD), as follows:
L XXX. X four instantaneous flow (m3 / h) or L/h
XX. XXXXXX eight cumulative flow (m3) or L
Cumulative flow: automatically expand the display precision, the cumulative flow values can be reset. Power-fail protection: instrument coefficient, the Total flow values ten years is not lost when power supply drop.
3) Helical rotor flow meter with 4 to 20 mA Output :
Power voltage: 24 V DC
Output signal: 4 TO 20 mA
- Polyurethane and polymer
- Light and heavy fuel oil
- Petrochemical products
- Thixotropical fluids
- Fat and oils with varying viscosities
- Hydraulic test rigs with varying viscosities and fluids
- Water / glycol mixtures
- Crude oil, furnace oil, and all viscous liquid even viscosity change with Temperature
Helical rotor flow meter and sensor are bellow special future compare to other all type flow meter
- High accuracy
- Pressure: up to 400 bar
- I ndependent of viscosity, perfect for 1 to 106 mm²/s
- Low pressure drop compared with other positive displacement meter
- High resolution
- Pulsation-free measurement, non-sensitive to pulsating flows
- Resistant to corrosion by advanced materials and bearings
- Pure Water
- Fuel
- Oil
- Acid& Chemical
- High Viscosity Liquid
- Hygienic Liquid
