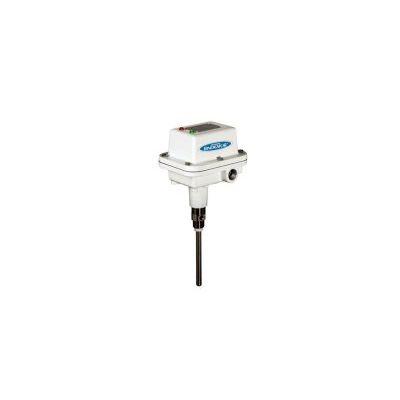

Bindicator - Model Flo-Guard -Broken Bag Detector
Bindicator’s Flo-Guard™ is a stable and reliable Broken Bag Detector and a Flow/No-Flow Switch for dry, powdered, and granular materials. The Flo-Guard uses a floating alarm point reference and a digital triboelectric microcontroller to eliminate instability common in other flow switches.
Most popular related searches
broken bag detector
bulk level monitoring
level monitoring system
flow switch
level monitoring
bag filter
high-temperature monitoring
bag leak detection
filter bag leak
temperature monitoring system
- For ground level access, high vibration areas or high temperature applications bulk level measurement.
- Technology: Broken Bag Detector
- Applications: Detects leaks, broken bags and filter failures in powder or granular materials
- Output Relay: DPDT, 5A @ 250 VAC or 28 VDC
- Input Power: 120, 240 VAC @ 5 watts; 60 Hz
- Temperature Range: -40° to 180° F (-40° to 80° C)
- Probe Temperature: 325° F (162° C) maximum
- Senses Dust at bottom 0.00028 grams/ft3
- Mounting: 1-1/4” NPT aluminum or 3/4” NPT SS
- Air Purge: 1/4“ NPT SS
- 85-265 VAC or 12/24 VDC
- Zero or two (2) Relays
- Sunbright Display
- Plastic, NEMA 4X Enclosure
- RS-485 Serial Adapter
