BIV Group

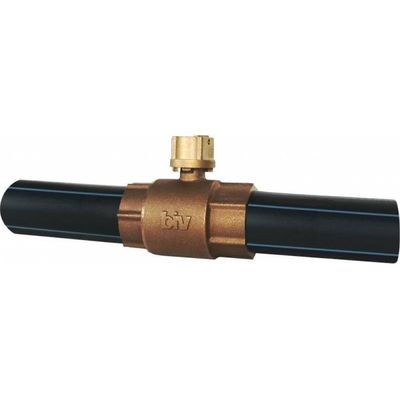

BIV Group - Bronze Service Valve
FromBIV Group
Valve that allows to interrupt the flow without needs to cut off the supply to the rest of the derivations of the same pipeline. Designed to withstand long periods of underground operation
Most popular related searches
- It has a polyethylene part to connect the water network (it is available in blue for drinking water and purple for sewage)
- Nominal pressure: PN16
- Body marking that makes it easier to identify
- Square handle with position identifier
- Body and cover: Brass CC499K according to UNE-EN 1982
- Square handle: Brass CW617N according to UNE-EN 12165
- Ball: Chrome brass CW617N according to UNE-EN 12165
- O rings: EPDM according to UNE-EN 681-1
- Stem, bolt and sleeve: Stainless steel AISI 304 according to UNE-EN 10088-1
- Polyethylene pipe: PE 100 PN16 according to UNE-EN 12201-2
- Seat: PTFE according to UNE-EN ISO 13000-1
