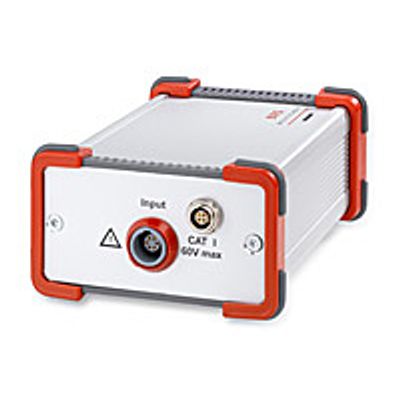

BRS - Model BIM2B -Battery Impedance Meter
BIM2B is a universal measuring device for use in the development, production and quality assurance of cells.
Most popular related searches
- Measurement of impedance according to active and reactive component or magnitude and phase
- Single frequency measurement and spectral impedance measurement (EIS)
- Graphical representation of the locus curve (Nyquist diagram)
- Automatic calculation of model parameters
- Offline analysis of spectral measurements
- Measuring the battery voltage
- Measurement of ambient temperature via external sensor
- USB interface for power supply and communication
- Measurement parameters : BIM2B
- Voltage measuring range : 5V
- Impedance measuring ranges : 1 / 3 / 10 / 30 / 100 / 300 / 1000 mΩ
- Frequency range : 0.1Hz….1kHz
- Temperature measuring range : 0°C…..60°C
