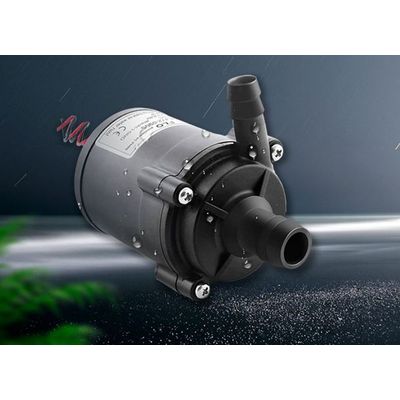

Topsflo - Model TL-B10-C -Brushless DC Centrifugal Pump
Reached stable and long-term cooperation with hundreds of well-known companies around the world Has an excellent quality reputation
Most popular related searches
centrifugal pumping
centrifugal pump
atmospheric drinking water system
atmospheric drinking water
hot water dispenser
air purification humidifier
drinking water system
water pump
pump system
cooling system
- Max Flow Rate: 7L/min 9L/MIN 12L/MIN
- Max Static Lift: 3M 5 M 8 M
- Rated Voltage: 12V / 24V
- Impeller Type: Closed impeller
- Motor Type: brushless DC motor
- Liquid Temperature: -40-100°C
- Hot Water Dispenser pump, Water Cooler pump,Vending Machine pump Atmospheric drinking water devices
- Auto Truck Air-conditioning System pump,Chiller Cooling Circulation System pump
- 3D Laser Printer Cooling pump, Battery Cooling System pump,Laser cutting machine cooling system pump
- Gene Sequencer Cooling Pump, Medical Equipment Water Pump, Air Purifying Humidifier pump
- Liquid-Cooled Supercharger Coolant Pump,EV charging cables cooling pump,home energy storage battery pump
- Max Flow Rate : 7L/min 9L/MIN 12L/MIN
- Max Static Lift : 3M 5 M 8 M
- Rated Voltage : 12V / 24V
- Impeller Type : Closed impeller
- Motor Type : brushless DC motor
- Liquid Temperature : -40-100°C
- Pump Theory : Centrifugal pump
- Ambient Temperature : -40-40°C
- Media : Pure Water
- Use Place : Indoor Outdoor
- Working Voltage Range : 6~18V or 12~28V
- Power Consumption : 7~32W
- Noise : < 40dB
- Ideal Life Time : 20000 Hours
- Working Mode : Continuous
- Power Supply : DC power supply, battery, solar powered
- Remarks : Can’t dry-running, not Self-priming
- Advanced magnetic driving technology for static-seal, without any leakage forever
- Durable permanent magnetic rotor with one-off injection incorporated impeller in smooth balance
- Heavy duty work, can sustain continuous 24 hours work
- Special designed high efficiency closed-type impeller
- Sustain 100°C hot water circulation
- All wetted materials FDA approved to be safety usage
- Low or no maintenance
- Can customized
- Protection Function: Blocked-Protection,Polarity Protection
- Custom function: Over-Current Protection,Dry-running Protection,Over-voltage protection
