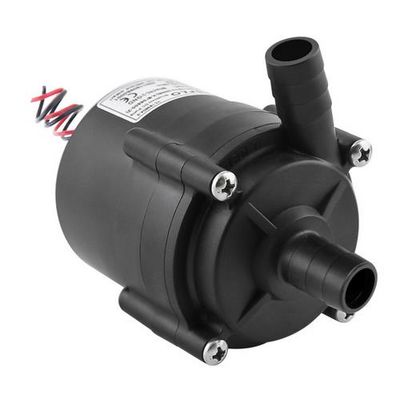

Topsflo - Model TL-C01-E -Brushless DC Water Pump
Our TL-C series design features micro centrifugal pumps powered by brushless DC motors. They are designed to be cool, quiet, compact and lightweight. A variety of features, including a seal-less design to prevent leakage, wide range of working voltage, stable performance, long life time, enable the pumps to meet a full spectrum of user needs, with emphasis on ease of installation, operation and maintenance. Reached stable and long-term cooperation with hundreds of well-known companies around the world Has an excellent quality reputation.
- Max Flow Rate: 20L 24LPM
- Max Static Lift: 8M,11M
- Rated Voltage: 12V / 24V
- Impeller Type: Closed impeller
- Motor Type: Three-phase brushless DC motor
- Advanced magnetic driving technology for static-seal,without any leakage forever
- Heavy duty work,can sustain continuous work
- High efficiency ECM brushless DC motor with long lifetime 30,000hours
- 3-phase motor for lower power consumption and lower fever
- Durable permanent magnetic rotor/impeller and fine ceramic shaft
- Specializing closed-type impeller for lower water loss bring higher efficiency
- High precision one-time injection magnetic rotor for stable lower vibration
- High temperature materials for liquid temperature 100°C
- Low or no maintenance
- Food grade materials
- Imported Japan XYRON PPE material, certificated by WRAS & NSF.
The centrifugal brushless pumps are designed for general, commercial and industrial applications. Ideal for circulation pump applications. They will pump fresh water, seawater, and other liquids that are compatible with the pumps materials and that are of similar viscosity to water.
- Liquid transfer general purpose pumping
- Hot water circulating system pump
- Electronics Cooling Water Circulation Chiller Systems pump
- 3D printer cooling water pump
- Instant electric water heater, electric shower pump
- Circulating systems for homes
- Cleaning equipment, purification and water treatment pump
- mart toilet boosting pump
- Boosting applications pump
- Medical equipment Water pump,Beauty water pump,Gene sequencer cooling pump
- LED cooling,semiconductor cooling pump
