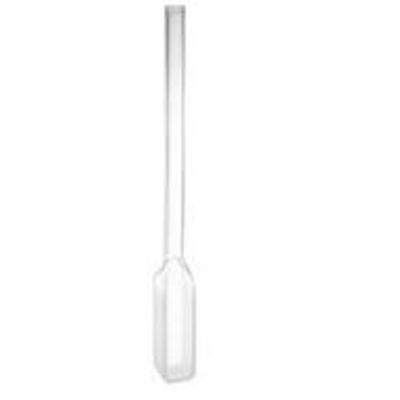

BSDLab - Spectrophotometer Cell with Graded Seal

• Tube OD: 8mm
• Overall Height: 120mm
• Material: Optical Glass
• Outside Dim: 45x12.5x12.5mm
• Path Length: 10mm
• Inside Width: 10mm
• Capacity: 3.5ml

Item number in stock: UV-704, OG-704

this Bsdlab cuvette specification is similar with the cells from Starna "Starna® Rectangular Cells with Quartz to Pyrex graded seal " type 1/GS, Hellma® Cells with Tubes Quartz catalogue Number 220-QS(220-10-40) ...

transmission on empty cell: at 200nm approx. 80%, deviations in matching: at 200nm max. 0.5%.
