BSI PACIFIC - Model MA1101 -Marine Loading Arms

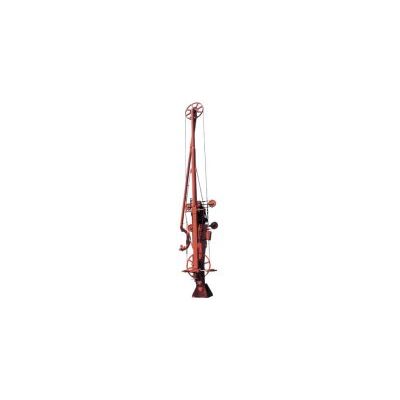

This marine arm type has been designed especially for medium reach applications (inland waterway and ocean going tankers). The PACIFIC caters for trouble free liquid transfer and best suitability even for critical media.

The loading arms can be operated manual very easily, but in addition the arms can be equipped with hydraulic drives depending on individual applications.

The riser, trunnion and apex swivel joints are equipped with hardened races and designed to take up all loads and moments.

The generously sized swivels also minimize friction for improved operation. During loading or unloading only the weight of the product in the inboard and outboard arm and wind forces react on the tanker flange.

• Easy operation
• Easy seal change
• Small dead weight
• Small space requirement
• Self Supporting Structure
• Generously sized swivel joints
• Minimal wind loads
• Nominal Diameter DN 4" to DN 10"
• Materials: Carbon steel, Low Carbon steel, Stainless steel
• Designed for medium reach applications (inland water way and ocean going tankers)
• Trouble free liquid transfer and best suitability even for critical media
• Can be operated manual very easily, but in addition the arms can be equipped with hydraulic drives depending upon individual applications.
• Large swivel joints to take up all external and internal loads and moments
• The loading arm can follow all ship`s movements
• Swivel: Each loading arm features 6 heavy duty swivels with
  • Split flange design
  • Twin rack ball races
  • Dynamic seal faces made of stainless steel
  • Independent product and ball chamber seals
  • Leak detection monitor

Accessories: The arms can be equipped with the following accessories

• Hydraulic drive assemblies
• Drain connections
• Mechanical locking device
• Vacuum breaker and /or N2 purge systems
• Electrical stray current protections
• Safety ladders
• Adjustable Support jack
• Range monitoring system
• Shut-off/isolation valves
• Emergency Release Coupler (ERC)
• Quick connect/disconnect coupler
