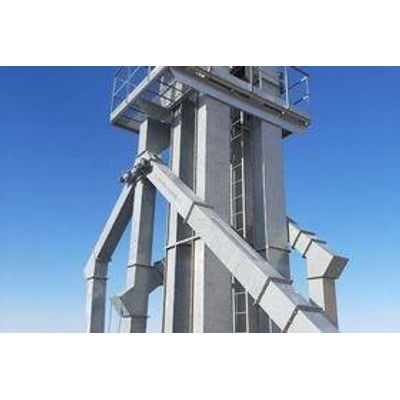

PTM - Model A-Line -Bucket Elevator
Best suited for use in small storage plants, or to transport cereals like wheat or corn.?A-Line Bucket Elevators are engineered to deliver reliable operation and maximum efficiency for your plant. The design of these elevators allows for easy maintenance and cleaning, to help reduce downtime and increase productivity. And they are equipped with safety features to protect operators and prevent accidents. The four models available in the A-Line series cater to different capacity requirements up to 200 t/h. Whether you are handling grains, seeds, fertilizers, or other bulk materials, A-Line Bucket Elevators are a reliable choice for your operation.
Most popular related searches
- Durable construction Manufactured from pre-galvanised sheet steel, with minimal welding.
- Overpressure resistance Elevator legs are formed by four bent and bolted panels, making them highly resistant to overpressure.
- Double cover driving head With anti-wearing steel bolted plates.
- Advanced return tail design Equipped with a screw tension belt system and double cleaning doors.
- Available accessories Choose from a range of loading, unloading, and control accessories.
- Easy installation and maintenance Thanks to the A-Line series’ modular, preconfigured construction.
- Typical capacity ranges: 60÷160 m3/h (50÷120 t/h on wheat)
- Steel buckets: Type 2014.JA / 2016.JA (deep profile)
- Belt: Antistatic, oil proof, breaking loading max. 400 N/mm
- Self-standing structure up to 32 m. height
- Max. power installed: 18.5 kW
