Watchdog - Model Elite WDC3 -Bucket Elevator & Conveyor Monitor
From4B Group

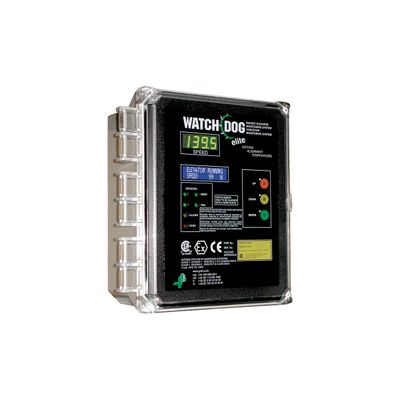

The Watchdog™ Elite is a microprocessor controlled unit with combined belt speed, belt alignment, bearing temperature, pulley alignment and plugged condition monitoring for bucket elevators and conveyors. An LCD screen displays machine status messages (available in four different languages) and a super-bright LED display shows belt speed. Calibration and set-up parameters are accessed via a password and front panel touch buttons.
Most popular related searches
conveyor monitoring
bucket elevator
belt alignment monitor
belt speed monitor
bearing temperature monitoring
bearing temperature sensor
bearing sensor
temperature sensor
bucket conveyor
monitoring bearing
- Designed for One Elevator Leg or Conveyor
- Monitors: Belt Speed, Belt Alignment, Bearing Temperature, Pulley Alignment & Plug Conditions
- Fully Programmable via Front Panel Touch Buttons
- LCD Displays System Status & Belt Speed
- PC Logging & Trending Software Available
FEATURES
- Belt Speed Monitoring
- Belt Alignment Monitoring
- Bearing Temperature Monitoring
- Pulley Alignment Monitoring
- Plug Condition Monitoring
- Acceleration Monitoring
- LED Displays
- RS485 Serial Communication (Standard)
- PLC Relay Interface Board (Optional)
WATCHDOG PART NUMBERS
- WDC3NV46CAI Multi-Voltage Model (110Vac/240Vac 50/60Hz and 24Vdc)
- WDC3NV4CAI 24Vdc only Model
ACCESSORIES
- TS1V4AI Touchswitch - Belt Alignment
- BS15V10AI Binswitch - Level/Plug
- ATS6V0FC-FP Autoset Flush Probe - Level/Plug
- WDA3V34CAI WDA Motion Alignment Sensor
- HTAS1V34 WDA Motion Alignment Sensor (High Temp.)
- P300V34AI P300 - Proxswitch
- WDB810V3AI NTC Bearing Temperature Sensor
- WDB70V3AI Surface Mount Temperature Sensor
- ADB810V3AI NTC Adjustable Depth Bearing Temp. Sensor - 4 Inch Probe
- ADB810V3AI/D2 NTC Adjustable Depth Bearing Temp. Sensor - 2 Inch Probe
- ADB810V3AI/D8 NTC Adjustable Depth Bearing Temp. Sensor - 8 Inch Probe
- WDPLCB2V4C PLC Alarm Relay Interface
- F5004V46CAI F500 Fieldbus Gateway*
* Available Fieldbus Gateways (Must Specify) - Ethernet/IP, DeviceNet, Profibus, Modbus TCP / RTU
