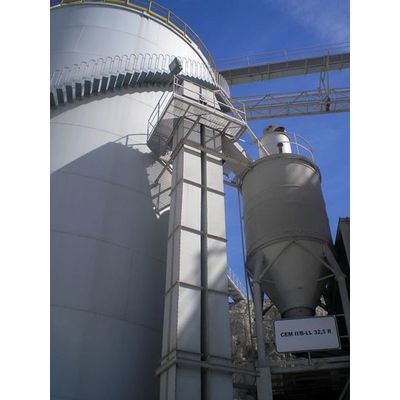

Gambarotta Gschwendt - Model EVD - DIN -Bucket Elevator with Chain Strands and Shackles

• Acceptable material grain size (mm): 0 - 40
• Recommended speed (m/s): 0.90 – 1.30
• Acceptable centre-to-centre distance (m): 40

Related sectors

• Cement works
• Fertilizer plants
• Minerals
• Steel works
• Food
• Power plants
• Chemical plants
• Foundry
• Naval ports
• Mortar plants
• Mixing plants
• Lime & quicklime sector
• Gypsum

• Buckets manufactured according to DIN 15234 specifications and equipped with holes for connection to the shackles.
• Two drive wheels with hub and smooth rim for driving the chains.
• Two return wheels of the same type as the drive wheels.
• DIN 764 and DIN 766 type chain strands (short-link chain).
• DIN 5699 shackles (Gambarotta standard), interchangeable with DIN 745-type.
• Tangential feed inlet on idle station.
• Tangential discharge outlet on drive station.
• Standard counterweight tensioning system.
• Type of discharge: tangential - centrifugal
