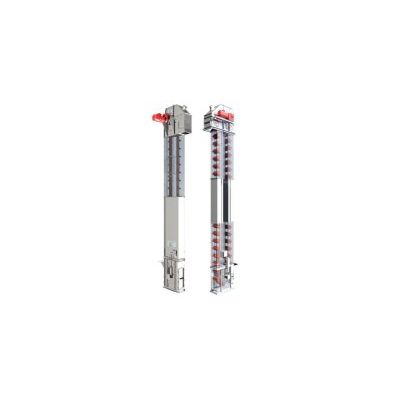

Doubrava - Bucket Elevators
Doubrava’s bucket elevators were designed for the vertical conveying of all types of free-flowing bulk materials. Our belt and chain bucket elevators ensure unwanted mixing of materials can be avoided wherever it would lead to a reduction in quality.
Most popular related searches
bucket elevator
chain bucket elevator
conveyor technology
belt conveyor
bulk materials flow
laboratory homogenizer
Belt bucket elevators can convey materials with a grain size of up to 50 mm at temperatures of up to 120 °C. Belt bucket elevators convey coarse materials at much higher temperatures. In order to avoid unwanted mixing of materials, the boot station can be equipped with a receiving tray that can be raised and lowered.
The design of our bucket elevators is based on Doubrava’s characteristic modular system and consists of the following components:
- Boot station
- Vertical cabinets
- Head station including drive station
- Bucket strand
- Bucket elevators are available in the following variants:
- Belt bucket elevators
- Chain bucket elevators
- Modular design
- High operating safety
- Simple to use
- Robust construction
- Long service life
- Special models for adhesive bulk materials
- Homogeneous conveying
- Boot station with receiving tray (fixed or movable)
- Rubber buckets
- Stainless steel construction
- Rubber-coated cabinets/rubber cabinets
- Extra parts:
- Pedestals
- Ladders
- Stair towers
- Inlet and outlet chutes
- Crawler gear motor
- Substructures
- Belt bucket elevator: up to 750 m³/h
- Chain bucket elevator: up to 250 m³/h
- Bucket width: 100–1250 mm
