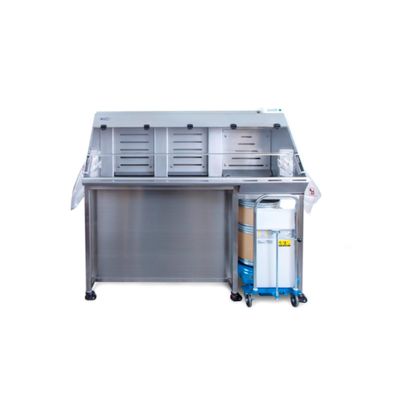

CTS - Model Bulk Powder -Bulk Powder Enclosure

CONSTRUCTION
• 316 Stainless steel main body
• 0.5ra Pharmaceutical grade internalsurface finish
• 304 Stainless mobile frame
• 8mm Optically clear cast acrylic hingedaccess door

DIMENSIONS (mm) - (WxDxH)
External:
1200 x 1000 x 1650
1500 x 1000 x 1650
1800 x 1000 x 1650

Internal:
1180 x 640 x 720
1480 x 640 x 720
1780 x 640 x 720

• Custom built solutions available.

POWER REQUIREMENT (SINGLE PHASE)
•230v/50Hz/13A Service (EU)
•110v/60Hz/20A Service (USA)

CONTAMINATION CONTROL
Additional extract is present around the drum access area providing additional protection from airborne contaminants released when opening drum bags.
When the sample drum is docked, the user is presented with a level and easily cleanable surface.

FACILITIES REQUIREMENT
• Re-circulatory design, can be stand-alone operation or connected direct to house extract

FILTRATION
• Safe-change HEPA filter
• Modular air handling filtration unit
• Min 99.995% efficiency at 0.3 microns (H14)
• Activated Carbon filtration available

AIRFLOW MONITORING
•Continual airflow monitoring using a dual sensor hot wire anemometer complete with Audible / Visual alarm
