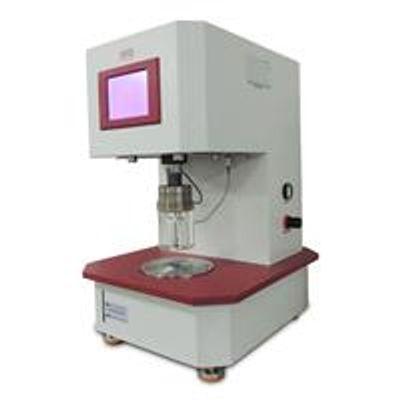

Testex - Model TF142A/B -Bursting Strength Tester
Bursting Strength Tester is used to test the strength of bursting for fabric. When you do the bursting test, bursting tester is a wise machine for you. We provide digital bursting strength tester with favorable price.
Application
Auto Bursting Strength Tester, to test the bursting strength of paper, woven or knitted fabrics, non-woven, fabric and board by the of hydraulic load under a Bursting tester diaphragm of a specific area.
Digital bursting strength apparatus provides with a digital readout of pressure with peak hold facility, renewable rubber diaphragms. Automatic clamping device with a clear acrylic bell, an LED lamp is equipped for easy observation.
Interchangeable test bells and clamping ring sets 7.3cm2 (Φ30.5mm), 10cm2 (Φ35.7mm), 50cm2 (Φ79.8mm), 100cm2 (Φ112.8mm).
Bursting strength testing machine is provided with three test methods, Constant speed bursting, Certain pressure bursting and Certain extension.
Specifications / Features
- High-accuracy servo-motor driving system
- Automatic-clamping offers firm and reliable clamping
- Large colorful touch panel, can be operated without computer
- Equipped with memory and printing function, supporting on-line operation.
- Resolution 2Kpa
- Test Head and Clamp: 50cm2(Φ79.8mm), 7.3cm2(Φ30.5mm), the other sizes are available on request.
Models
- TF142A 2000 kPa (290 psi)
- TF142B 10000 kPa (1450 psi)
Weight
- 170 kg
