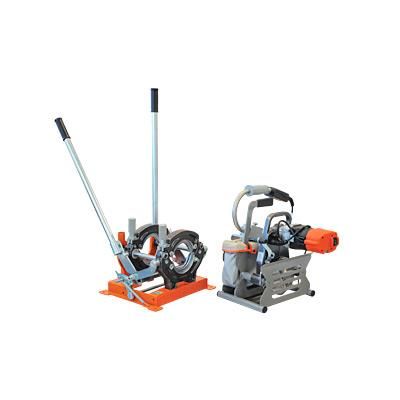

Ritmo Delta - Model 160 M -Butt Fusion Machine
DELTA 160 M is a manual butt fusion welder for pipes up to Ø 160 mm or up to 5” IPS - 4” DIPS. Leading particulars are the restricted weight, minimum overall dimensions and versatility. Featuring: a machine body, two clamps with fast inserts system by locking buttons, an extractable electric milling cutter provided with a safety micro-switch, an extractable heating plate with “Digital Dragon” the high precision electronic thermoregulator (± 1° C accuracy) with digital display and regulating buttons. This system includes Led indicators to check if the machine is working normally (live tension and working temperature), contingent probe’s failures and/or temperature anomalies.
Power supply 110 V or 230 V LOCKING DEVICE
Helps to keep constant pressure during heat soak and fusion / cooling
- Job site manual welding machine
- Self-centering and precise jaws/clamps
- Twin blade milling cutter
- Rigid fiberglass heating plate bag
- Good bead visibility
Working range
Ø 1” ÷ 5” IPS
Ø 3” ÷ 4” DIPS
Ø 11/4” ÷ 2” CTS
Ø 32 ÷ 160 mm
Materials
HDPE, PP, PVDF
For other materials contact RITMO S.P.A.
Power supply
110 V Single Phase 50/60 Hz
230 V Single Phase 50/60 Hz
Total absorbed power
1850 W (110 V)
1700 W (230 V)
Dimension Body Machine
15.1” x 17.7” x 32.7”
384 x 450 x 830 mm
Dimension Milling Cutter
13.1” x 10.9” x 15”
333 x 277 x 383 mm
Dimension Heating Plate
16.9” x 8” x 21.7”
430 x 205 x 550 mm
Dimension Support - Heating Plate / Milling Cutter
13.2” x 12.4 x 18.4”
335 x 314 x 468 mm
Weight Body Machine
54.8 lb
24,8 Kg
Weight Milling Cutter
21. lb
9,8 Kg
Weight Heating Plate
9.7 lb
4,4 Kg
Weight Support - Heating Plate / Milling Cutter
16.3 lb
7,4 Kg
