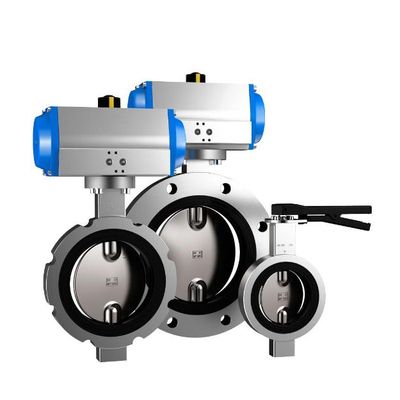

Burgmer - Model 130 L, 140 M, 150 S -Butterfly Valve
Application area: Silo- / Liquid tank trailers, Pharmaceutical-/ Chemical industry, Food industry, Plant engineering, Rail wagons. Installation situation: Wafer type / Lug type*. Medium/aggregate state: Fluids, Bulks, Gases. Diameter: DN 50 – DN 350. Pressure range: -0,8 bar up to +6 bar* .
Most popular related searches
- Casing: EN AC-46200 / EN AC-51100 / special materials*
- Face to Face length: BURGMER-factory standard, EN 558-1 line 20
- Disc: 1.0619 / 1.4408 / 1.4408 HP
- Shaft: 1.1191 / 1.4404
- Bearing pin: 1.1191 / 1.4404
- Sealing: NBR, EPDM, FKM, Fortelan/AU, MVQ, CSM
- Flange bores: TW-Norm, PN 6, PN 10, special boring
- Actuation
- pneumatic driven (double-acting / single-acting),
- electric driven (setting-drive / variable speed drive),
- Hand worm gear,
- Hand lever
- Guideline
- according to DGRL 2014/68/EU
- according to FDA 177.2600
- according to VO EG 1935/2004
- according to ATEX 2014/34/EU
