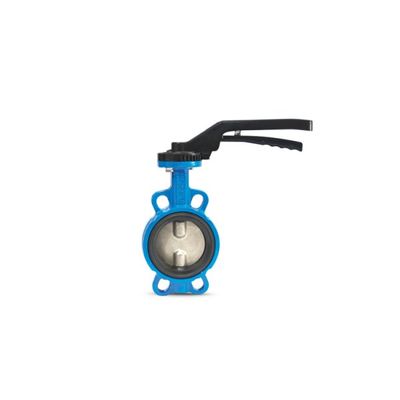

FAF - Model 3500 -Butterfly Valve - Wafer
Equipped with various disc materials and can be used in various flow types and different applications with the EPDM, NBR and VITON seat options. Compared to other valve types, with its compact dimensions offers the advantages of lightweight, easy installation and cost effectiveness. Head loss is at minimum level through the double shaft design of FAF Valve.
Most popular related searches
power plant cooling water
butterfly valve
water treatment plant
water pipeline
valve locating
epoxy coating
water treatment pump
water treatment pumping
power plant water
pneumatic actuator
- The inner and outer surfaces of valve body are coated with electrostatic fusion bonded epoxy (FBE) / oven baked powder epoxy coating. Smooth operation and longer life is maintained in tough conditions.
- Higher coating thicknesses can be applied upon request.
- Up to DN 300 (inclusive) sizes are supplied with hand lever as default DN 350 (inclusive) and above are supplied with gear box as default.
- Electrical or Pneumatic actuators directly fit on valve top flange (ISO 5211)
- No need for any additional intermediary parts.
- Can be installed in any desired position
- Maintenance-free.
- Four flange mounting semi-lugs ensure correct valve location when installing
- The valve body and disc are accurately machined which results in low operating torque and long service life and reliability.
Temperature
- +130 °C (EPDM)
- +100 °C (NBR)
- +220 °C (VITON)
Scope of Application
- Chamber installation
- Installation in plants
- Pipelines
- Water treatment plants
- Pumping stations
- Tanks
- Seawater applications
- Power plants (cooling water pipelines)
- Industry
