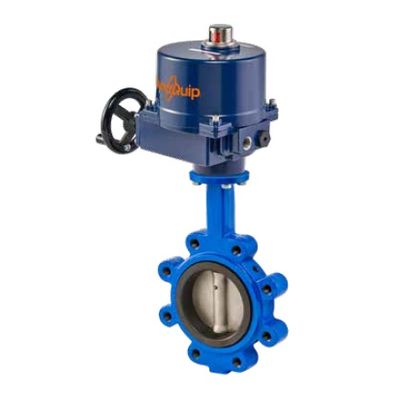

DynaQuip - Model DynaFly 900/922 Series -Butterfly Valve with Electric Actuator
The DynaFly 90 Wafer and 92 Lug Series are the work horses of industrial butterfly valves. Pre-sized and preassembled with our MA series electric actuators, these valves come standard with ductile iron body and disc and abrasion-resistant Buna-N Phenolic Backed Seat for stretch resistant, tight shut-off during actuation and quick and easy field repairs. Other voltages and body or seat materials are available on request.
Most popular related searches
electric actuator
butterfly valve
automatic butterfly valve
industrial butterfly valve
position indicator
ASTM A536
electric actuator valve
electric valve
valve actuator
automated valve
- Wafer Style (900) or Lug Style (922) Bodies
- Standard Body Material: ASTM A536 Ductile Iron
- Standard Disc Material: Ni-Coated Ductile Iron. 316 Stainless Steel is also available
- Standard Seat Material: Buna-N Also available in EPDM, Viton, PTFE/EPDM
- 200 PSI CWP 2-12" direct mount
- Temperature range: -40°F to 392°F (Dependent on seat material)
- Operator: MA series Electric Actuator (DynaFly Series)
Key Actuator Specifications and Benefits
- NEMA 4X Weatherproof/Corrosion resistant housing
- Manual Override, Non-clutch side mounted handwheel
- Die Cast Aluminum with Epoxy polyurethane paint
- Two (2) 1/2" NPT conduit entries
- Self-locking, high allow steel gear train
- 30% Duty rated reversing motors
- Thermal overload protection
- Four (4) Limit switches for Motor Control and Remote Indication of End of Travel
- Adjustable mechanical travel stops and Local visual position indication
- 120 V ac, single phase standard. Additional voltages available including: 12 V dc, 24 V dc, 24 V ac, 220 V ac single phase, 230 V ac triple phase, 460 V ac triple phase
Key Valve Specifications and Benefits
- ISO 5211 mounting patterns and square stems for ease of actuation.
- Cartridge style elastomer seat provides a positive seal without the use of flanges.
- 200psi rating for valve size 1.5” to 12”.
- Secondary O-Ring provides further prevention of stem leakage.
- Stem retainer plate ensures blowout protection.
- Precision profile disc provides bubble-tight shut-off and assures minimum torque and longer seat life.
- Smooth finished disc flats that prevent leakage into shaft areas.
- Extended neck
- No taper pins on the disc to ensure trouble-free service and better flow.
- Graphite-reinforced PTFE stem bushings provide low torque and long cycle life.
- Lug style valves shall be suitable for dead end service to full rated pressure in in preferred flow direction: 200psi unidirectional; 100psi bi-directional
- Vacuum service capable 1.5” – 12” to below 10 microns
