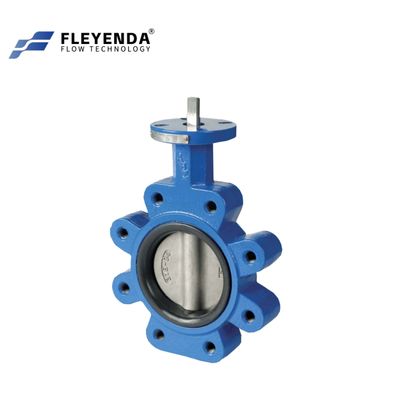

Fleyenda Flow - Model LTD71X -Butterfly Valve With Stainless Steel Disc
LTD71X lug-type 4 inch butterfly valve can be driven by manual, worm gear, pneumatic or electric. The structure is centerline type, and the sealing structure is soft seal. It has a simple structure, small size and light weight, and consists of only a few parts.
It only needs to be rotated 90° to open and close quickly, which is simple to operate. At the same time, the valve has good fluid control characteristics. When the butterfly valve is in the fully open position, the thickness of the butterfly plate is the only resistance when the medium flows through the valve body. Therefore, the pressure drop generated by the valve is very small, so it has good flow control characteristics.
The products are widely used for regulating and intercepting pipelines in water treatment, shipbuilding, chemical industry, petrochemical, smelting, medicine and food industries.
- Fast Delivery: Standard products in stock
- ODM service is available
- One-stop Solution: Full set of accessories for the option to improve your working efficiency
- Quality Assurance:CE, ISO9000 certification, Strict IPQC & QC to make sure the high-quality actuator and valve
- Cost-effectiveness:Long service life, reduce maintenance and replacement costs
- Anti-leakage: Excellent sealing, lowering the chance of leaking
- Place Requirement: Butterfly valves are smaller in size and need less site area.
- Low and High-temperature Resistance: -30°C~180°C (-86°F~356°F)
- Working Pressure: 150~200 Psi
- Construct: 2-section valve stem is pinless, compact structur
- Maintenance: Maintenance and disassembly are easy
- Anti-leakage: The stem seal is not easily deformed, thus avoiding the usual stem leakage
- Quick Operation: The opening and shutting are simple and rapid, with little fluid resistance
- Low Pressure Drop: Minimal resistance to the flow of the fluid
- Special Requirements: High pressure, high temperature, strong corrosion can be customized
- Size Range : DN50 to DN300 (2``~12" Inch)
- Ball Material : Cast Iron, Cast Steel, Ductile Iron, Stainless Steel
- Seat Material : PTFE, Nylon, PPL
- O Ring : PTFE
- Connection Type : Worm Gear (GB/ANSI/JIS/DIN)
- Pressure Rating : 1.0 to 6.4MPa
- Temperature Of Medium : -30°C~180°C (-86°F~356°F)
- Applications : Water Treatment, Oil&Gas, Biotechnology, etc
