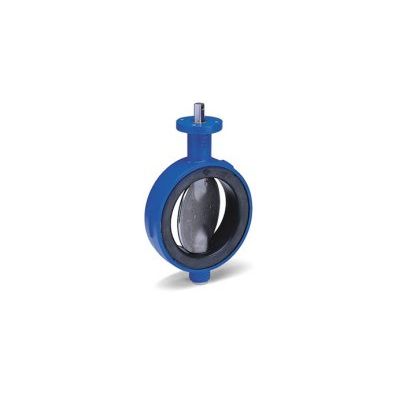

AVK - Model 75/10-020 -Butterfly Valves
75/10-020 - AVK centric butterfly valves with fixed liner feature an outstanding seating concept. The rubber is injection moulded directly on the valve body forming a permanent bond. Consequently, there is no risk of deformation or dislocation of the liner making the valves suitable under vacuum conditions. The combination of the profiled disc edge and the excellent AVK rubber quality ensures maximum durability of the liner.
Most popular related searches
butterfly valve
centric butterfly valve
water supply
epoxy coating
resistivity profiling
water distribution
drinking water
water butterfly valve
flow profiler
flow profiling
- Bonded vulcanized liner of drinking water approved EPDM with an excellent compression set and thus ability to regain its original shape
- Streamlined disc with minimum flow resistance
- Profiled disc edge requires minimal deformation of the liner to achieve tight sealing, and results in less wear of the liner
- Disc, shaft and conical pin of duplex steel in DN≤200. Disc of rilsan coated ductile iron, and shaft and conical pin of stainless steel in DN≥250
- Shaft bearings of PTFE coated steel
- Top shaft sealing: DN≤350: Bronze bushing with two EPDM O-rings, DN≥400: EPDM O-ring in bushing fixed with countersunk screws of galvanized steel
- Bottom shaft sealing: DN≤350: Plug of galvanized steel with a copper sealing ring, DN≥400: Axial bearing and ring of alubronze and an EPDM O-ring, protected by a cover plate of galvanized steel
- Low torques as a result of the profiled disc edge and fixed liner design
- Ductile iron body with 200 μ epoxy coating blue RAL 5017
