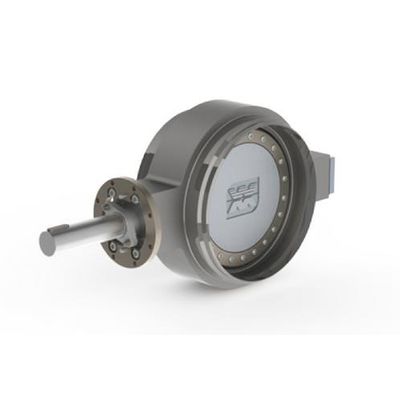

Quadax - Buttweld Type Butterfly Valve
The buttweld type is mainly used in above ground pipeline construction. This version without flange connections significantly reduces the risk of undetected leaks.
Most popular related searches
butterfly valve
above ground pipeline
pipeline construction
PTFE butterfly valve
steel butterfly valve
PTFE valve

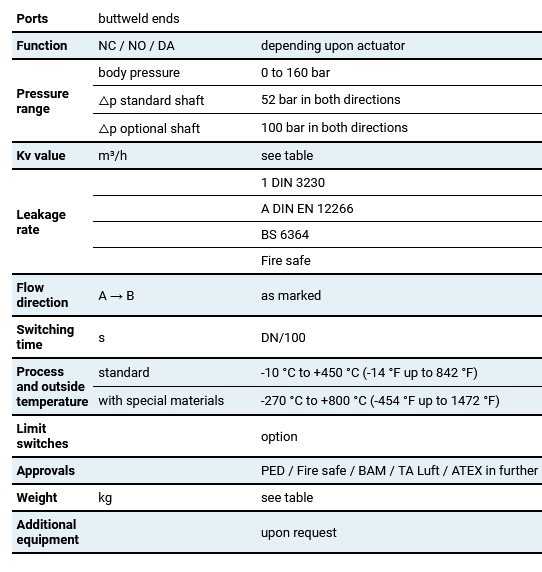

- Standard: -10 °C up to +450 °C (-14 °F up to 842 °F)
- With special materials: -270 °C up to +800 °C (-454 °F up to 1472 °F)
- Butterfly valve: 4-offset
- Pressure range: PN 0-160 bar
- Nominal diameter: DN 80-1800 mm
- Connection: welding ends
- Housing materials: Steel, stainless steel,
- Special materials: (Duplex, Inconel, Bronze)
Seat materials
- Inconel
- Others on request
Sealing materials
- Graphite / stainless steel, Inconel, stainless steel, PTFE
