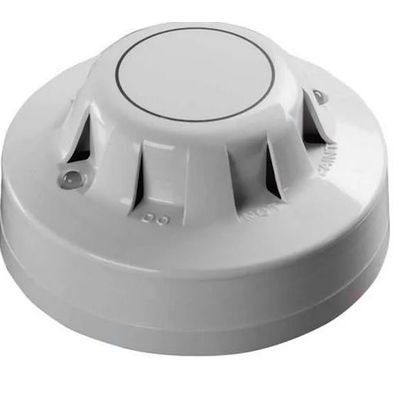

C-TEC - Model AlarmSense - 55000-390APO -Optical Smoke Detector
A high quality optical detector. Suitable for use with C-TEC’s CFP AlarmSense range of 2-8 Zone Two-Wire Fire Panels. Housed in a pure white polycarbonate moulding. Fitted with two alarm LEDs to allow 360º visibility.
Most popular related searches
- Third-party certified to EN54-7 by UL International (UK) Limited.
- 9-33V DC operating voltage.
- Requires a 45681-244APO AlarmSense base.
- Can also be purchased as part of a detector/sounder or detector/sounder visual indicator base combination (see Combination AlarmSense Devices section below).
- Approvals/ certifications: Certified to EN54-7 by UL International (UK) Limited.
- Ap p li catio n/o p e rati on: Generates an alarm condition when it detects a pre-set threshold of smoke penetration into the smoke chamber.
- Supply wiring: 2-wire monitored, polarity insensitive.
- Supply /operating voltage: 9 to 33V DC.
- Quiescent current: 50pA@15VDC.
- Alarm voltage: 9-33VDC
- Alarm current: 1.5mA2-8.5V; 25 +/- 2mA @ 10.5-15V; 1.5AmA @ 18-24V; 2mA @ 33V.
- Alarm reset voltage: 2V max (1 second alarm reset time).
- Product dimensions (mm): 100mm diameter x 42m deep (detector only); 700mm diameter x 50mm deep (detector in base).
- Construction & finish: White polycarbonate.
- IP Rating: TBC.
- Weight: 100g.
