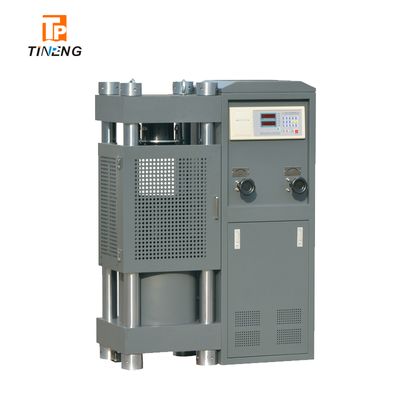

C-Tech - Model compression test machine -concrete compression test machine CTM UTM

SHARE
SYE Series hydraulic compression testing machine is used for the compression test of concrete and other construction materials, manual load, digital display the value of pressure and ratio of loading. It can save and print the test result directly by the controller. It also can be equipped with computer to show the load curve and process the date.
Most popular related searches
compression testing system
compression testing
concrete compression testing system
concrete compression testing
concrete testing
load frame
concrete testing system
hydraulic testing

  • SYE-2000BS

    Feature: Manual load, protect cover
    Max load capacity: 2000kN
    Compression space: 330mm
    Piston stroke: 120mm
    Size of upper compression plate: Dia. 300mm
    Size of lower compression plate: Dia. 300mm
    Power: 380V(200V optional), 50Hz(60Hz optional), 0.75kW
    Dimensions(load frame): 900*400*1250 mm
    Weight: 900kg
