CAB-AIR - Cabin Air Filter (KLF)
The desire to improve the breathing air in the cabin not only follows the requirements of occupational health and safety, but also the fundamental concern about the well-being of the operating personnel. The ventilation used here, under the name CAB-AIR, works almost silently, so it does not have a disruptive effect on the operator.
for clean air in the cabin area.
(no protective ventilation system)
The overpressure system of the cabin air filter KLF combines our tried and tested TOP-LUFT pre-separator with an integrated fan (12V / 24V) in order to maintain a cleaned overpressure in the cabin. This prevents contaminated air from entering the cabin.
The CAB AIR cabin air filter (KLF) is the space-saving, inexpensive solution to transform the place of use into a place of clean ambient air.

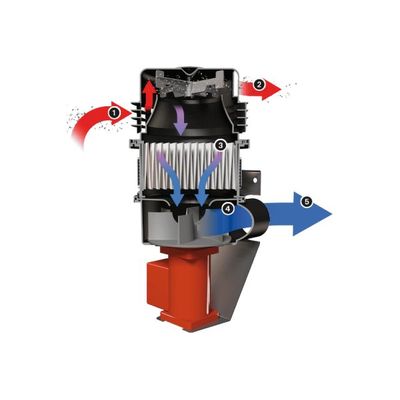

How the KLF works
The integrated blower of the KLF presses the air contaminated with particles into the filter via the built-in pre-separator and cleans it. The finely filtered air then enters the vehicle cabin via a fan.
The areas of application of the KLF
Suitable for keeping the cabin air clean without replacing a dust protection system. Filtration of the cabin air by double filtration of the intake air using its own 12 / 24V. This overpressure prevents contaminated air from entering and the interior remains clean and the driver breathes filtered air.
- Contaminated air is sucked in
- More than 90% dirt is ejected
- air filter element (also Hepa)
- Integrated fan with 12 and 24 V motor
- Clean air is fed into the cabin under pressure
The KLF is available in the following versions:
- KLF PO: TOP AIR pre-separator and blower
- KLF APC: TOP LUFT, paper filter (standard S, H) and blower
- KLF ICP: TOP LUFT, paper filter blower with intelligent pressure control
- KLF ICP EL / KLF ICP: Long version can also be converted with activated carbon.
