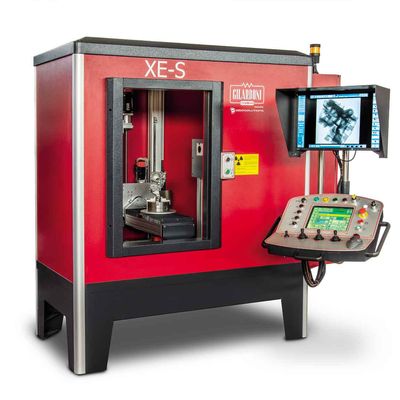

Gilardoni - Model XE-S -Cabinet for Radioscopy and Industrial Tomography

FromGilardoni S.p.A.

SHARE

The XE-S Cabinet, designed by Gilardoni, is a compact, versatile system suited for radioscopy and industrial tomography applications. In its base configuration, it houses a 160kV minifocus X-ray source called 'AION'. For enhanced adaptability and precision, it can be upgraded to other minifocus sources up to 225kV or a microfocus source, enabling detailed analysis at micron level resolutions. It features a digital panel for image capture and sophisticated software with proprietary filters, delivering high-quality imaging results. The cabinet utilizes a sturdy 5-axis manipulation system equipped with brushless motors and multiturn absolute encoders, facilitating seamless operation without reset requirements post shut-down or system recovery. It offers penetration capabilities up to 160mm of aluminum (or 30mm of iron) with an inspectable volume of Ø 420mm x H 600mm, and a loading capacity of 20kg, making it suitable for diverse industrial applications.

Most popular related searches

absolute encoder

compaction system

non-destructive testing

safety information

The XE-S cabinet is the smallest of the series: versatile and modular it allows to install, at a later time, different components and additional functions compared to the initial configuration, adapting to the new needs of your business.

In its basic configuration it’s equipped with minifocus X-ray source 160kV “AION” produced by Gilardoni, but it can be equipped with other minifocus sources up to 225 kV or microfocus source for high resolution analysis on small components or with details of a few microns.
The use of a digital panel for image acquisition, together with cutting edge processing software and proprietary filters, allow to obtain HIGH-QUALITY IMAGES

The solid 5-axis manipulation system uses brushless motors with multiturn absolute encoders that permit the usage without any reset operation after switching on or restoring the system.

The robust 5-axis manipulation system, with absolute multi-turn encoders, allows use of the equipment without resetting after shutdown or system recovery.

Modularity
High image quality
Small footprint and light weight
Easy loading
Cutting edge software
Low maintenance
Operator safety
Interconnection with company information system
Ergonomic work position
Standard lead shielding for applications up to 225kV

PENETRATION
up to 160mm Al (or 30mm Fe)

INSPECTABLE VOLUME
up to Ø 420mm x H 600mm

LOADABLE WEIGHT
20kg

EQUIPPED WITH

Minifocus source
160kV or 225kV
Microfocus source
8’’ Flat panel

For use in various fields:

Automotive
Aerospace
Foundry
Piping
Welding
Rubber
Plastic
Electronics
Research
Reverse engeneering
