Cabinplant - Baudelot Water Chiller
The Cabinplant water chiller is of the Baudelot (falling film) type. Water flows uniformly from a common overhead distribution trough over both sides of the vertical stainless steel plates. The water flows in a thin film over the computer-designed outer surface of the plates to obtain the highest possible outside film coefficient.
Inside the plates, refrigerant boils, following a computer-designed path for high inside film coefficient and low pressure drop. The stainless steel collection tank is equipped with a float valve for make-up. The make-up water is led to the overhead distribution trough. In addition, the tank is equipped with a number of pumps for pumping chilled water to the consumption location. The unit is designed to be fully enclosed during operation; opening is required only for cleaning purposes.
Capacity depends designed to be fully enclosed during operation
The unit consists of:
- Rotating filter (optional) or parabolic screen as on picture
- Distribution
- Computer-designed cooling plates
- Collection/accumulation tank
- Recirculation pumps
- Fresh water connection with automatic level control
- High efficiency
- Chills liquid to almost refrigerant temperature
- Automatic level control
- Computer-designed cooling plates
- Built-in filter system
- Open construction for easy cleaning
Length: 3050 mm
Height incl. filter; 3470 mm
Width: 2830 mm
Dimensions of the above configuration.

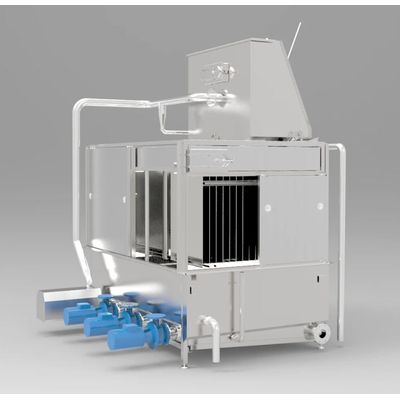

Chiller with 16 cooling plates and Reko screen filter
