Grinnell - Model A523 -Cable Circuit Piping

FromITT Grinnell

SHARE

Specification A523 covers Seamless and Electric Resistance Welded steel pipe used as conduit for the installation of high-pressure pipe-type electrical cables. Suitable for welding and for forming operations Involving flaring, belling and bending. Size Range: NPS 4-12.

Most popular related searches

tensile testing

stainless steel pipe

steel welded pipe

hydrostatic pressure testing

hydrostatic test

hydrostatic testing

Testing Requirements
Hydrostatic Testing

Hydrostatic inspection test pressures are specified. Hgdrostatlc pressure to be maintained for not less than 5 seconds.

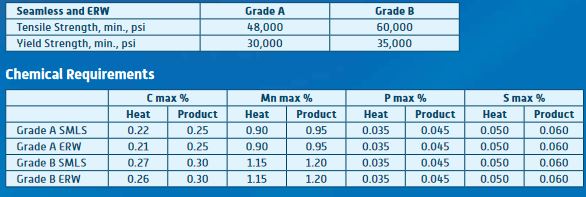

Mechanical Tests

Tensile Test - longitudinal
Weld Tensile-transverse
Flattening Test - seamless and E RW

Number of Tests

Tensile - one length from each lot of 500 or less

Flattening

Seamless - one length from each lot of 500 or less
ERW - Single lengths - crop ends from each length
Multiple lengths - crop ends from each length plus 2 intermediate rings
