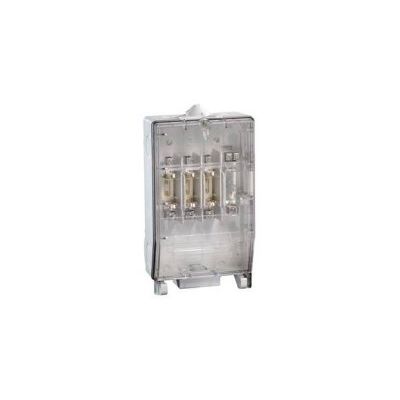

Model KH00 according to DIN 43627 series K3 -Cable House Service Connection

Housing cover

• Hinged, in 15° position detachable
• Glass fibre reinforced polyester type 803
• Optionally transparent design/polycarbonate

Input

• Seal membrane, sideways on the left and on the right pre-marking for Pg 36

Output

• Twisting sleeves
• Sideways on the left and on the right pre-marking Pg 36
• Above two and on the right one pre-marking Pg 16

Installation

• NH00 lower parts made of ceramic according to DIN 43620
• Optionally NH00 connections on a plastic socket

Input clamps

• Steel frame V-clamps 10-95 mm² Al/Cu

Output clamps

• Flat steel frame clamps 6-50 mm² Al/Cu

PEN conductor

• Connection clamps as by NH00 lower parts
• Additional clamp and twisting sleeves Pg 16 for PA (M1)
• Optionally separated clamp option for PE/N (M2)

VNB cover

• Two-parted VNB cover, depositable in the box for reuse, optionally System GEYER security cover.

Special designs

• Housing with sideways removable pre-markings for pluggable slides (slide: order number 68508), housings with back-mounted pre-marking for roof rack spout.
