Techno-AC - Model CBI-116N -Cable Locator

Features CBI-116N

• LED indication
• Audio indication
• Affordable price

Brief description CBI-116N

• Operating frequencies: 50(60)* / 100(120)* / 512 / 1024 / 8192 / 32768 Hz
• Broad band: 0,05 to 8,20kHz
• Visual indication: LED scale (7 values)
• Audio indication: headphones natural, filtered and synthesized signal. Built-in emitter – synthesized signal
• Min and max method of cable tracing

Application CBI-116N

• Detection of energized cables underground up to 6m depth
• Measurement of the depth by passive “electromagnetic” method

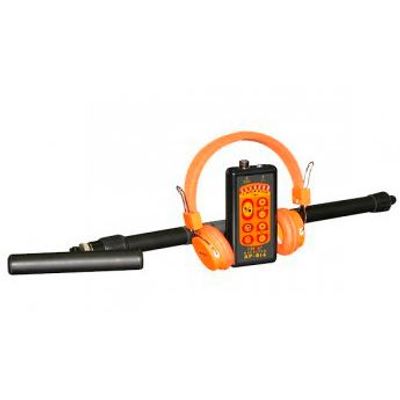

Standard set CBI-116N

• Receiver AP-014
• Electromagnetic sensor EMD-247
• Headphones
• Set carrying bag
• EMD carrying bag
• Operation manual
• Technical passport

First of all, this kit has a minimum cost. Therefore, this makes it possible to use it in not expensive projects. Moreover, it is easy to manage and use. Therefore, there is no need to attract highly qualified employees. In conclusion, the low cost of the kit is provided by narrowing the functionality.

• Frequencies of the receiver’s filter Main filter frequency 50(60)* / 100(120)* / 512 / 1024 / 8192 / 32768 Hz
• «Broadband», (frequency range) 0,05 to 8,2 KHz
• Gain factor 100 dB
• Visual indication LED scale (7 values)
• Sound indication Headphones – natural, filtered and synthesized signal
• Built-in emitter – synthesized signal
• Power supply Voltage 1,8 to 4V – alkaline batteries АА type 1,5 V (2 pcs.)
• Time of continuous operation not less than 10 hours
• Operation temperature -30°С to +50°С
• Location precision +\- 0,3 m
• Ingress protection rating IP54
• AP-014 receiver dimensions 145 ×70 × 24 mm
• Weight of the electronic unit 0,15 kg
