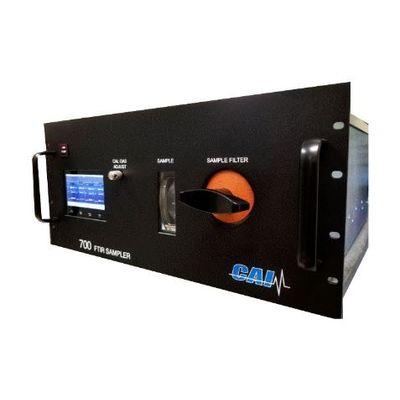

CAI - Model 700 FTIR -Heated Sampler Fourier Transform Infrared (FTIR) Analyzer

FromCalifornia Analytical Instruments, Inc. (CAI)

SHARE

Specifically designed for optimal sample handling of CAI FTIR analyzers. CAI offers four analyzer models that utilize Fourier Transfer Infrared technology for measuring concentrations of multiple gases within a sample. CAI FTIR analyzers deliver fast, accurate analysis of virtually any gas that has an infrared absorption spectrum.

Most popular related searches

electric actuated ball valve

stainless steel tube

heated sampling system

digital temperature controller

multi-gas monitoring

infrared analyzer

heated sampling

NEW Touch screen display provides temperature control circuits for oven, pump, and heated sample line to analyzer (5 feet)
Ensures critical components are maintained at 191° C
Single -head heated pump, 5.5 LPM (Optional Hl-flow with Variable 11-14 LPM)
T-Handle heated filter (S21-T type borosilicate element, 0.01 micron) located on front panel for easy access
Heavy duty high-temperature flow meter
Solenoid valves for zero, span and bias calibrations
Electrically actuated ball valve for switching between sample and calibration modes
Stainless-steel tubing and 1/4" SS bulkhead connection fittings
Modbus TCP I/O for control and outputs
Digital inputs to control valves
Power requirements: 115 VAC/9.3 amps; 230 VAC/4.78 amps
19-inch rack mountable, fan-cooled enclosure (17" W x 22" D x 8.5" H)

700 FTIR Temperature Controller Accessory provides up to 4 circuits for external heated lines and/or heated-jacket
17"Wx8"Dx3.5"H)
