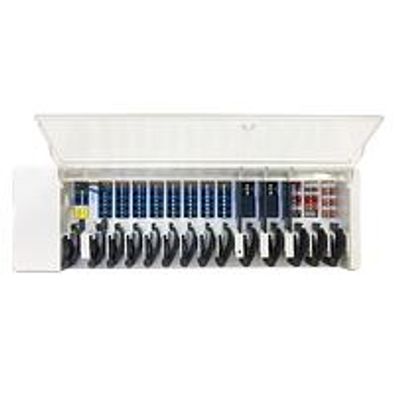

CALEONbox - Surface Controllers
Universal system and individual room controller in combination with up to 8 °CALEON room controllers.
Most popular related searches
digital temperature controller
temperature sensor
smart thermostat
data logger
water control
can separator
domestic water
flow control
dehumidifier unit
temperature monitoring
- by 1-wire bus up to 20 sensors. Additional temperature sensors by CAN network
- Two separate CAN networks, 1x private (appartment), 1x heating system (building)
- up to 8 °CALEON can be supplied with 24VDC by °CALEONbox. When connecting more °CALEONs, an additional power supply is required. Alternatively, an external 230VAC thermostat can be operated for each zone.
- for measuring tap temperature and flow for domestic hot water control
- via 230VAC relays on/off, or speed-controlled via PWM
- Flow temperature control is done according to room temperature, optionally weather-compensated or combination of weather-compensation with room temperature influence
- up to 8 heating zones with up to 3x 230VAC actuators as NO or NC design also with PID control
- potential-free relay contact, 0-10V or PWM signal or via CAN network
- adjustable via °CALEON or °CALEON Clima
- via SOREL Data Logger (soon also via °CALEON 24VDC Smart Thermostat with Wifi)
- separately in every zone where °CALEON Clima is installed
- Temperature control class VIII / 5%
- Power supply 230VAC
- Internal operating voltages 24VDC, 5VDC, 3.3VDC
- Relay outputs 230VAC on/off 9
- Relay outputs potential-free with switch contact 1
- 0-10V or PWM outputs 3
- 24VDC voltage output for external devices Yes, max. 6W
- LEDs for operating conditions 13
- Temperature sensor inputs *1 up to 20
- Grundfos VFS Sensor input *4 ✕
- Compatible room controllers *3 up to 8 °CALEON
- Digital interface *2 2x CAN + 1-Wire
- Heating pump *5 230VAC on/off or PWM
- Heating mixer *6 0-10V or PWM
- Heating zones and actuators *7 8 x 3
- Heat request *8 ✓
- Fan coil function via 0-10V/PWM ✓
- Heating/cooling switching *8 ✕
- Cooling request *8 ✕
- Dehumidifiers *9 ✕
- Heating operating times per day *10 8 per zone
- Comfort function for rapid heating *10 ✓ for each zone
- Energy-saving heating mode Eco *10 ✓ for each zone
- Cooling times per day *10 ✕
- Comfort function for rapid cooling *10 ✕
- Energie-saving cooling mode Eco *10 ✕
- Internet access via SOREL Connect *11 ✓
- Dew point calculation *12 ✕
- Holiday programme ✓
- PID control for constant room temperature ✓
- Frost protection function ✓
- Circulation pump operation ✕
