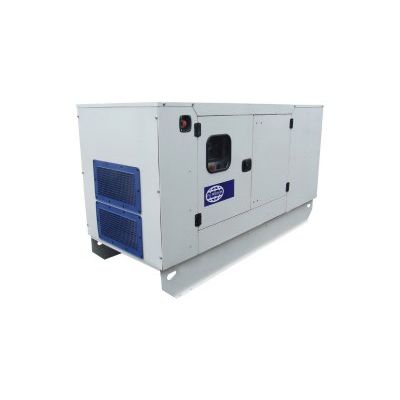

CALG - Model 50 – 218 kVA -Modular Acoustic Enclosure
The compact modular design of the 40 – 218 kVA CALG enclosures ensure optimum performance in the harshest of environments. Designed on modular principles, they have interchangeable components permitting on-site repair. Lift off doors and access panels provide optimal service and maintenance access. Extremely durable and robust, the enclosures are designed to resist corrosion and handling damage with the ability to withstand rough handling common on many construction sites. Developed through continuing research and development by our specialist engineers, all FG Wilson enclosures are fully weatherproof and incorporate internally mounted exhaust silencers.
Durable and Robust Construction
- Galvanised steel protected by powder coat paint (CALG)
- Black finish stainless steel locks and hinges
- Zinc plated / stainless steel fasteners
Security and Safety
- Control panel viewing via large viewing window in lockable enclosure door
- Emergency stop push button mounted on enclosure exterior below control panel
- Cooling fan and battery charging alternator fully guarded
- Fuel fill and battery can only be reached via lockable access doors
- Fully enclosed exhaust silencing system for operator safety
Excellent Service and Maintenance Access
- Side hinged doors on both sides of the enclosure opening to 180°
- Side hinged doors lift off at 90°
- Removable front and rear access panels
- Lube oil and coolant drain valves
Transportability
- Lifting points on base frame facilitating handling from both sides
