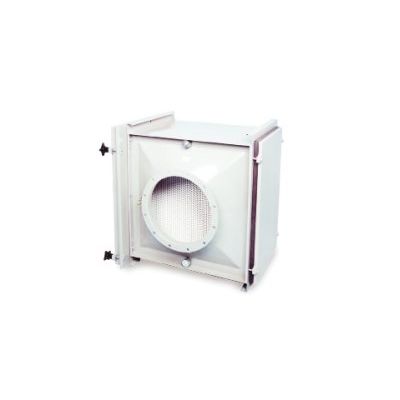

CamBox - Filter Containment Systems

• Simple filter installation
• Available with safe change bag for contact-free filter change
• Available for different types of filters and sizes
• Available with screw or hinged inspection hatch
• Available in full or half-size module

• Application: For the removal of hazardous dust and gas in laboratories, radiology departments and isolation wards.
• Filter housings, painted: Epoxy resin coating, RAL 7037, clamping device made of stainless steel SS2333.
• Filter housing stainless: Manufactured in AISI 304 stainless steel.
• Filter housing stainless: Manufactured in AISI 316 corrosion-resistant stainless steel.
• Standard: Connection for Ø315 mm or Ø200 mm flexible duct.
• Optional: Ø 315 mm welded flange with connector for pressure drop measurement.
• Door: Flat service cover.
• Optional: Inspection hatch or special door for contamination-free change of changing bag.
• Note: * Inspection hatch have separate article numbers.
• Filter: Absolute or Micretain model 450 and 1000, filter class E11-H14 according to EN 1822. Also Airopac model 3CPM-122412 and 3CPM-242412, filter class M6, F8 according to EN779:2012.

CamBox Housing casings can be joined in serial for multi-stage applications. Air flow volumes up to 3,500 m3/h can be achieved.

Camfil Farr’s CamBox Housings offer the following advantages:

• Available with or without contact-free filter change-out
• Easy and secure filter installation, spindle-operated
• Optional filter seating test according to DIN 1946, Part 4
• Sealed, welded and solid design
• Tightness Class B according to EN 1866 at 5000 Pa
• Easy to connect with 315 mm spiral tube
• Optional connection with 315 mm flange system
• Available in a powder-coated or stainless steel finish

All main filters can be equipped with straps to facilitate handling and change-out. The filters can be supplied with a variety of gaskets to suit the specific application. The casing accommodates different classes of filters that are suitable for dealing with gas or particle contamination.

CamBox Housings are ideal for round piping systems. Areas of use include laboratories, isolation wards and the pharmaceutical industry.
