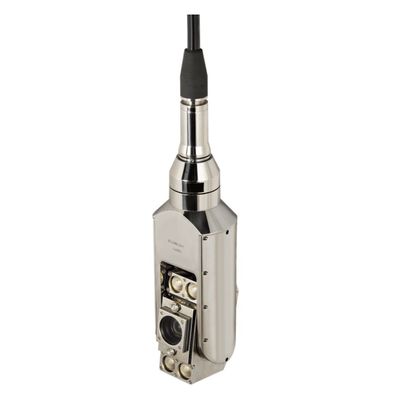

Diakont Proton - Model 1.0 -Camera System
Diakont’s Proton camera system is a compact unit with remote pan/tilt, zoom, and LED lighting that makes it an extremely useful tool for use in the refueling cavity, reactor vessel, and spent fuel pool.
- Full Color HD image (1080i, 720p)
- Ultra-reliable integrated pan & tilt device
- 10x optical zoom
- Radiation tolerance (integral dose) 105 Rad, waterproof design
The Diakont Proton camera system is the optimum solution for refueling support camera systems.
With its powerful 10:1 zoom and a state-of-the-art CMOS HD sensor, it’s also some of the best video you’ve ever seen underwater. The Proton is fabricated from durable, easily decontaminated stainless steel, and the straightforward refurbishment process makes for a minimal cost of ownership. Simply deploy and instantly have high-resolution video to support your operation.
A Compact Solution
Diakont’s Proton camera system is a compact unit with remote pan/tilt, zoom, and LED lighting that makes it an extremely useful tool for use in the refueling cavity, reactor vessel, and spent fuel pool. The load-carrying cable allows the operator to deploy the camera without a requirement for poles or robotics, making it ideal for use in a variety of inspection and monitoring applications.
Proton HD Camera Applications
- Monitor reactor assembly/disassembly
- Monitor tool deployment and operation
- Fuel serial number verification (high-speed“core mapping”)
- Inspection of reactor internals and steam dryer OD
- Monitor cask-loading activities
Proton Console System
Diakont’s Proton console system incorporates the best-in-class Proton rad tolerant HD camera along with a rack-mounted camera control unit, a monitor, a digital video recorder (DVR), and a microphone, all integrated into a rugged enclosure. By combining the Proton camera with all of the equipment required to successfully complete visual inspections, the Proton console offers a turnkey solution that is ready to use “out of the box.”
- Image Sensor: CMOS
- Resolution: Full HD (1080i)/HD (720p)
- Image: HD color
- Frame rate (FPS): 25/30
- Sensitivity: 1 Lux
- Signal/noise ratio: 50 dB
- Optical/digital zoom ratio: 10x/12x
- Horizontal angle of view (air/water): From 5.4 to 50°/from 4 to 37°
- Operating distance range: From 5 mm
- Pan range: 350° (±175°)
- Tilt range: 280° (±140°)
- Pan/tilt speed: 3.5°/s-10°/s (depending on operating mode)
- Lights: LED/4?10W
- Lights operating distance: 10 m
- Laser: Yes (optional)
- Zoom control: Remote
- Focus and iris control: Automatic/manual, remote
- Lights control: Remote, selecting the lights
- Housing material: Stainless steel
- Operating Temperature range (air/water): From 0 to 40°?/from 0 to 45°?
- Operational dose rate: 104 Rad/h
- Integral dose: 105 Rad
- Protection degree: IP68 (40 m)
- Dimensions: Ø101×290 mm
- Weight: 5.5 kg
