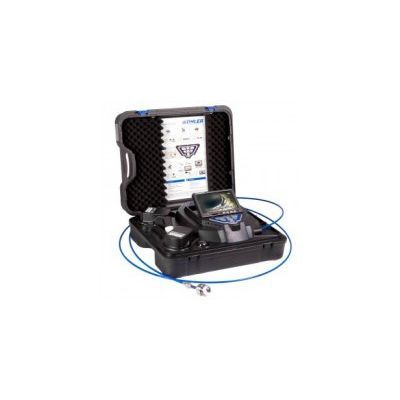

Wöhler - Model VIS 350 PLUS -Camera System
Video inspection in a case: With the new Wöhler VIS 350 camera system, you not only have everything you need to inspect waste water pipes, flue gas and ventilation lines as well as industrial systems – you can also precisely locate the damage and accurately document the results of the inspection.
Wide range of applications
Analyze damage and inspect:
- Waste water lines of Ø 70 mm and larger
- House connections up to Ø 200 mm
- Flue gas systems of Ø 60 mm and larger
- Ventilation lines of ventilation systems
- False ceilings, hollow spaces, shafts
Functionality
- Optics pan 360° and tilt 180° – facilitate maximum movement radius and ensure even the smallest damage does not remain hidden from your view
- Store video footage and photos on a 2 GB SD card (Wöhler VIS 350)
- Camera head with integrated transmitter harmonizes location detection by the Wöhler L 200 Locator
- Digital position and angle of the camera head displayed on the monitor
- Home function aligns the camera head to a straight position – display parallel to the ground above
- Brightly illuminating color camera head, 60 mm in length and 40 mm in diameter, easily negotiates tight bends
- Electronic meter counter with a resolution of 0.04 m displayed on the monitor
- Bright TFT color monitor (tiltable and removable) supplies razor sharp images
- Battery operating time: 2 x 120 min. with 2 rechargeable batteries (optional)
- Fully equipped mobile solution in a robust plastic case
Locator (optional)
- Transmitter integrated in camera head makes it possible to precisely locate the camera head
- Facilitates targeted repairs to damaged pipelines
- Telescopic holder makes it possible to locate damage under floors or in ceilings
- Chalk holder with lithographic chalk ensures it is possible to mark located damage immediately
- Long-lasting LI-ION rechargeable battery
Documentation
Simply record and store photos and videos on a 2 GB SD card (Wöhler VIS 350) for documentation and archiving purposes for you and your customers.
for visual inspection of water pipes, flues and ventilation lines from 60 - 200 mm Ø
Scope of delivery:
Wöhler VIS 350 Service Camera
digital meter counter
pan and tilt color camera head Ø40 mm (detachable)
Wöhler TFT monitor 7" with 2 m cable
SD memory card 4 GB for recording of pictures and videos
mini USB cable
30 m push rod 6.5 mm
5 replacement plastic domes
1 anti-slide-mat
2 NiMH batteries and charger
plastic case
