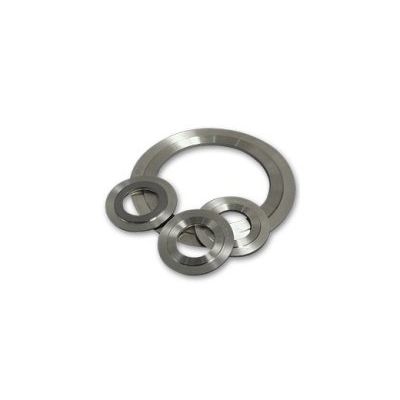

Chesterton - Camprofile Semi-Metallic Gasket
Among metal gaskets, the Chesterton Camprofile stands out for its outstanding performance in emissions control and industrial applications with virtually no detectable leakage. Because it accommodates a wide range of gasket stresses, this semi-metallic gasket is ideal for plant standardization.
Most popular related searches
- Certified low emission performance
- High reliability
- DIN and ANSI standard gaskets
- Custom shapes available, including heat exchanger gaskets
- Pipe flanges
- Heat exchangers
- Pressure vessels
- Reactors
- Valve bonnets
- Housings
- Material Stainless steel carrier with a graphite or PTFE sealing element (more materials available)
- Temperature Graphite sealing layer 550°C (1022°F), PTFE sealing layer 300°C (572°F), Inert media -200°C to 900°C (-328°F to 1652°F)
- Pressure 400 bar g (5801 PSI)
- pH 0 to 14 (depending on metal carrier material)
- Color Gray
- Approvals TA-Luft
