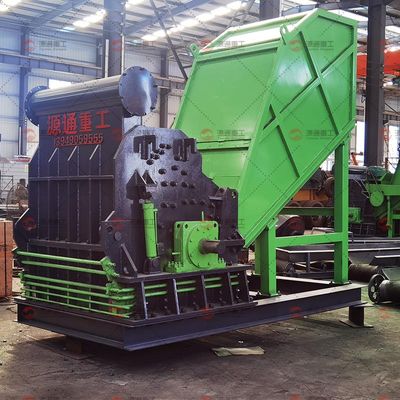

Yuantong - Model YTP Series -Can Crusher
The cans crusher is mainly used in the waste recycling market and the large-scale waste recycling market. It can crush iron paint buckets, aluminum paint buckets, tin cans, paint cans, cans, tin sheets, and waste color steel tiles. It can also crush paint cans. , Oil cans, etc., as long as it is metal, it can be crushed. Yuantong mechanical can crusher has low noise, no pollution, and high crushing efficiency. The cans crusher has finely crushed materials and uniform particles. The average number of stations below two millimeters is 90 %, the crushed materials are very easy to carry and transport, convenient to feed steel making, and the frequency of feeding is also reduced a lot. So as to achieve the purpose of facilitating transportation and regeneration. Yuantong can design and process the can crusher equipment model suitable for your enterprise according to the special requirements and suggestions of users.

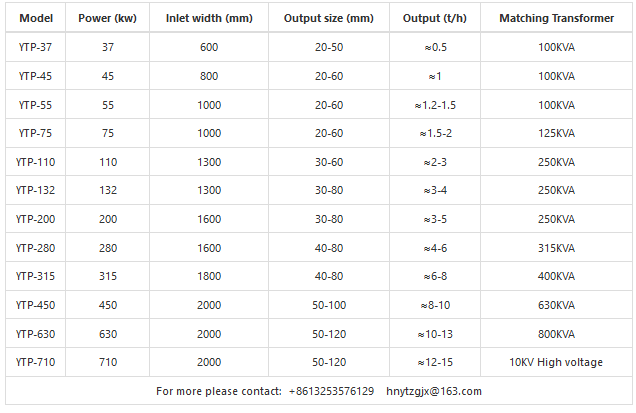

- Power: 37-710kw
- Inlet width (mm): 600-2000mm
- Output size (mm): 20-120mm
- Output (t/h): ≈0.5-15t/h
- Applicable material: Various light metals, car bodies, bicycles, scrap aluminum, refrigerators, motor rotors
Metal Shredder Composition
The metal crusher is composed of a motor, a shell, a liner, a hammer head (knife head), a rotor frame, a rotor disc, and a pulley.
Working Principle of Metal Shredder
The basic principle of the scrap steel crusher is to hit the hammer head. Driven by the high-speed and high-torque motor, the hammer head on the rotor of the main engine hits the objects to be crushed into the cavity in turn, and the material to be crushed enters the cavity through the formation between the liner plate and the hammer head. The space to be crushed can be fully and effectively crushed in the crushing cavity, and the crushed objects can be torn into broken objects that meet the specifications. Crushed materials pass through the air rotary sorting system to separate metal and non-metal. The entire system of the metal crusher is equipped with a dust removal device to minimize the dust pollution hazards generated during the production process.
- Reasonable design and excellent manufacturing prolong the service life of the equipment and reduce the maintenance cost of the equipment.
- The hammer head is adjustable, and the material is made of special alloy material, which is wear-resistant and impact-resistant.
- The motor drive consumes 20% less electricity than the motor of similar products, and it is equipped with overload protection for electrical appliances.
- The control button makes your operation easier, and only one person is needed for the whole crushing process.
- Since we are a manufacturer, we can provide you with OEM processing, so the price is more advantageous, the quality is guaranteed, and our service is perfect, so you can buy it comfortably and use it at ease.
