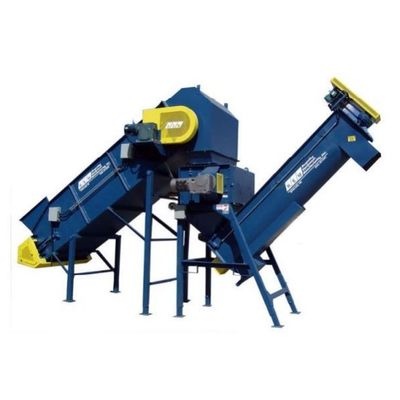

REM - Model HV -Can Crusher & Plastic Perforator
With a processing capacity of up to 20,000 containers per hour, the REM Model HV Perf Compactor is the full beverage destruction equipment you’ve been waiting for. Designed to fill the need for a very high volume full beverage destruction system with the added benefit of absolutely no handling of the destroyed product by your in-plant labor. REM Inc. has produced the HV Perf Compactor system to be a completely bulk-fed, low RPM perforating system that also compacts your destroyed containers into a waiting receiver box. This equipment will save you valuable man-hours by automating the tedious chore of manually handling your waste product.
Product is loaded on the in-feed conveyor hopper to be conveyed up into the perforator-crushing unit, which is completely sealed inside a gasketed housing. The perforator-crushing unit discharges the destroyed containers into the inclined auger conveyor, which is equipped with a perforated trough to allow liquid to drain from the destroyed product prior to discharge into the baler. An operator controlled rinse system is standard to dilute residual beverage fluids inside the unit and to prevent product build-up in the system.
- Galvanized interior finish
- Perforator speed: 35 RPM
- Perforator horsepower: 7.5 HP
- Incline auger speed: 31 RPM
- Incline auger horsepower: 5 HP
- Sealed perforator housing
- Rinse system
- Inverter duty motors
- Automated Lubrication system
- Container tipper
- Automatic tipper operation
- Full safety interlocked cage
- Collection drain
- Collection drain with pump
- Full Hopper cover
- Full Conveyor cover
- UL/CUL listed control panel
- Max. Discharge Height: 8’
- Length: 30’ 21/2”
- Width: 7’ 8”
- Hopper load height: TBD
- Hopper Width: Variable
- Hopper Capacity (up to): 2 cu. yd.
- 240/480 volt, three phase
- Electrical components are UL listed
- NEMA-4 (hose proof) enclosure
- Motor overload/short circuit protection
