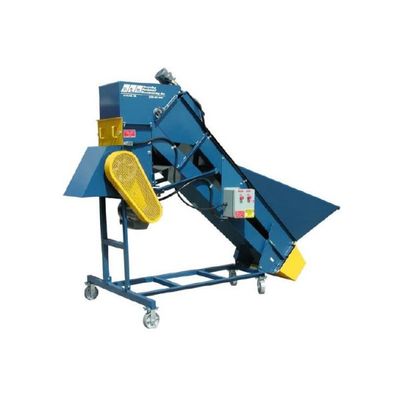

REM - Model PRC-7.5 -Can Crushers for Used Aluminum Beverage Containers
The REM PRC Series Can Crushers are complete separating and crushing units for aluminum cans. The design of this unit has the reputation for dependability and low maintenance. Rugged steel construction makes the PRC Series the one to use for long-term productivity.
Proven Design
The PRC Series efficiently separates and crushes up to 1,800 lbs. of aluminum cans per hour. Load cans into the hopper and the conveyor carries the cans across the magnetic head pulley separating the steel and aluminum. The aluminum cans are crushed between a steel pressure plate and a rotating crusher drum with hardened steel bars, then the cans drop into a REM TRC Conveyor, MCB Can Buying System, or other container.
Standard Features
The PRC Series is designed with many standard safety features. An electrical safety interlock on the crusher access door and a main electrical disconnect protects the operator and the machine.
- Processes up to 1,800 pounds of cans per hour
- Third generation field-proven design for high volume, low maintenance, extended life, and easy service
- Crusher drum has hardened steel cleats
- Hopper screen minimizes dirt, debris, and moisture
- Enclosed tail pulley cover with external take-ups for correct belt tracking and tension
- REM magnetic head pulley for superior separation
- Low in-feed hopper for easy loading/visual inspection
- Enclosed belt and chain guards for user protection
- All steel unitized construction
- Density of 4-6 lbs. per cubic foot
- PVC-150 conveyor belting with 1-1/2” vulcanized cleats and Flexco 125 Megalloy Lacing
- 2/3 cubic yard in feed hopper
- 8” diameter magnetic head and 6” diameter crowned tail pulleys
- Reversible steel can side-discharge chute
- Enclosed sides and bottom of belt return pan
- 1/3 HP TEFC conveyor motor
- Utilizes TEFC crusher motor (refer to table on front)
- 6” industrial casters for mobility
- 240/480 volt, three phase
- Electrical components are UL listed
- NEMA-4 (hose proof) enclosure
- Sequential manual start motor controls
- Main safety fused disconnect
- Individual motor overload/short-circuit protection
- Safety interlock on crusher access door
- 240 volt, single phase
- 208, 380, 415, 480, or 575 volt, three phase
- Power cord
- Custom conveyors, hoppers, and discharge heights
- If you don’t see it, ask us!
