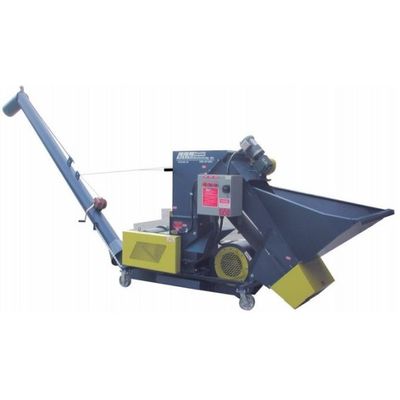

REM - Model CC Series (CC-5, CC-7.5, CC-10) -Can Crushers for Used Beverage Containers
The REM CC Series Can Crushers are a complete separating, crushing and blowing unit for aluminum cans. The design of this unit has the reputation for dependability and low maintenance. Rugged steel construction makes the CC Series the one to use for long-term productivity. The CC Series efficiently separates, crushes, and blows 1,400 to 2,000 lbs. of aluminum cans per hour (see chart below). Load cans into the hopper and the conveyor carries the cans across the magnetic head pulley separating the steel and aluminum. The aluminum cans are crushed between a steel pressure plate and a rotating crusher drum with hardened steel bars, the cans then drop into a high-velocity air stream and are blown into a trailer or storage container.
The CC Series is designed with many standard safety features as standard equipment. A high-performance blower allows accurate and complete delivery of cans. An electrical safety interlock on the crusher access door and a main electrical disconnect protects the operator and the machine.
- Processes up to 2,000 pounds of cans per hour
- Third generation field-proven design for high volume, low maintenance, extended life, and easy service
- Crusher drum has hardened steel cleats
- Hopper screen minimizes dirt, debris, and moisture
- Enclosed tail pulley cover with external take-ups for correct belt tracking and tension
- REM magnetic head pulley for superior separation
- Low in-feed hopper for easy loading/visual inspection
- High performance blower to fill a 45’ trailer
- Enclosed belt and chain guards for user protection
- Blow tube safety restraints
- All steel unitized construction
- Density of 4-6 lbs. per cubic foot
- PVC-150 conveyor belting with 1-1/2” vulcanized cleats and Flexco 125 Megalloy Lacing
- 2/3 cubic yard in feed hopper
- 8” diameter adjustable blow-tube with support cable and brake winch
- 8” dia. mag. head and 6” dia. crowned tail pulleys
- Reversible steel can side-discharge chute
- Enclosed sides and bottom of belt return pan
- 1/2 HP TEFC conveyor motor
- Crusher and blower TEFC motors (refer to table on front)
- 6” industrial casters for mobility
Dimensions: CC-Series
- Height (A): 6’
- Length (B): 23’
- Width (C): 48”
- Loading Height (D): 42”
- Weight approx. (lbs): 1,950
Dimensions: CC-Series
- Height (A): 6’
- Length (B): 23’
- Width (C): 48”
- Loading Height (D): 42”
- Weight approx. (lbs): 1,950
- 240/480 volt, three phase
- Electrical components are UL listed
- NEMA-4 (hose proof) enclosure
- Sequential manual start motor controls
- Main safety fused disconnect
- Individual motor overload/short-circuit protection
- Safety interlock on crusher access door
- 220 volt, single phase
- 208, 380, 415, 480, or 575 volt, three phase
- Power cord
- Custom conveyors, hoppers, and discharge heights
- If you don’t see it, ask us!
