Canadyne RiverBoom - Versatile, General-Purpose Boom
Canadyne RiverBoom is a versatile, general-purpose boom designed for use in many different spill response applications. The boom freeboard is maintained with cylindrical foam floats. These floats offer a high degree of wave conformance and reserve buoyancy in choppy or rough conditions. An added top tension member offers additional tensile strength and renders the boom more stable in fast currents. A heavy ballast chain is used to ensure the boom skirt does not lift in fast currents.
- Boom Type: Curtain, Solid Buoyancy
- Recommended Conditions: Port, Harbours, Inland waters, Rivers, High currents

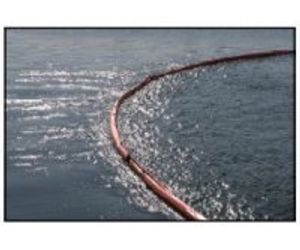

The RiverBoom is a high tensile, shallow draft boom ideally suited for spill response operations in flowing waters. Use in deflection mode in high currents to bring oil to shore for skimming/removal. Above photo shows boom deployed in a 5 knot (8.5 km/h) current.
- Available in a wide range of heavy-duty PVC coated fabrics
- PVC coated galvanized steel aircraft cable top tension member.
- Cylindrical foam floatation (rolled polyethylene) for maximum memory characteristics. Will retain shape, will not crush or break into pieces.
- Floats are secured internally which eliminates pinch points or external seals and ensures a smooth external profile for superior oil containment
- Economy model available with polystyrene floatation.
- Corrosion resistant ASTM style marine grade aluminum connectors
- Heavy duty galvanized steel ballast chain
- Custom sizes available
- Solid foam buoyancy for utmost reliability.
- Available with 2.5 ft (0.75m), 5 ft (1.5m) or 10 ft (3m) fold points.
- Shallow draft to minimize loss of oil by entrainment.
- Aircraft cable upper tension member and heavy ballast chain provide excellent stability and outstanding tensile strength.
- Wide range of PVC and Urethane fabrics available.
- ASTM or Universal style marine grade aluminum boom connectors to mate with existing equipment inventories.
- 22 oz/yd2 (750 gsm) heavy-duty PVC-coated polyester fabric, bright orange
- All seams radio-frequency (RF) welded
- Marine grade extruded aluminum ASTM style end connectors
- 50 foot (15.25m) section length
- Solid, closed-cell, cylindrical polyethylene (PE) foam flotation
- High tensile strength with upper and lower tensile members
- Black webbing handles at connectors, (additional handles optional)
- HC (High-Current) models fitted with heavier ballast chain and bridle attachment points (cable loops), top and bottom between every pair of floats
- Hot dipped galvanized ballast chain in fully enclosed pocket with drain holes
- Stainless steel hardware / fasteners
- Anchor points at midpoint and each end
- Full factory support for spares, repairs and technical assistance
- Upgrade to heavier 28 oz/yd2 (950 gsm) PVC or to a polyurethane fabric for increased abrasion resistance
- Universal-type or Shotgun-type aluminum end connectors
- Custom sizes, section lengths
- Custom screening of client name, logo or identifying marks
Recommended Accessories
- Towing Bridle and Tow Line
- Anchor Assembly systems
Storage Options
- Boom reels, storage/deployment containers, trailers
