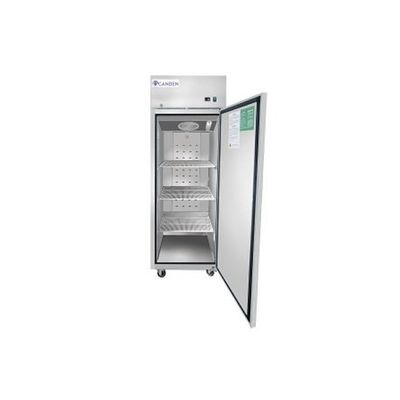

Canden - Model KTS20 -Stability Refrigerator

The chamber comes standard with temperature range capabilities of 2° C to 8° C with control of temperature at sensor of ±0.2° C and uniformity inside chamber of ±1.0° C. With optional extended temperature up to 30°c.

This chamber has the highest level of performance, and precise temperature control and uniformity, they are perfect for many medical cold storage needs.

The chamber has standard back wall plenum to ensure uniform distribution of conditioned air. Also standard is a 2″ access port with insulated plug. We use a non proprietary controller which  display set value and process value.

Chamber features all stainless steel interior and exterior construction with 2″ polyurethane CFC free insulation.

• Stainless Steel Exterior & Interior
• Maintains temperatures between 2°c to 8°c
• LED interior light
• Recessed Door Handle
• Door locks standard
• Magnetic door gasket standard for positive door seal
• Pre-Installed 4″casters with bumper brakes
• Three (3) Pre-Installed shelves per section
• 2″ access port
• Back wall plenum for even distribution of conditioned air

Chamber uses thermoelectric assembly for heating and cooling. This type of cooling/heating system completely eliminates need for conventional refrigeration system and failures due to mechanical components such as compressors thereby drastically increasing the life expectancy of each chamber. Maintenance cost is also lowered by the thermoelectric/Peltier driven heating/cooling system. The chamber is quiet  while in operation. Chamber temperature set points are tightly controlled using PID controller.

• Panel mount-usb cable interface
• Simplifies Controller Management with Easy-to-Operate Graphic User Interface,LED display, Autotune capability
• Provides Access to Advanced Scripting Capabilities
• Save Controller Parameters
• Access Stored Parameters
• Log Controller Data
• Control access via software
• 2 programmable alarm
• IP-65 Panel (front panel splash proof)
• CRC protocol correction build in for error free communication
• Visually interpret thermal data
• Set multiple target temperatures and program steps for advanced applications like thermal cycling
• Save and load script parameters from stored files on your disk drive
• Multiple jumps and loops function for complex testing profile

• Temperature range : 2°C to 8°C
• Temperature uniformity :  ± 1°C
• Temperature control at sensor : ±0.2°C
• Control resolution : ±0.1°C
• Cooling/Heating type : Thermoelectric/Peltier driven-for heating/Cooling
• Chamber Volume in Cu. Ft : 21.4 cu.ft
• External Dimension-LXWXH : 28″×31″×81″ (refer to drawing)
• Internal Dimension-LXWXH24″ x 27″ x 60″(refer to drawing)- height includes plenum which is 5″H.
• Cabinet specs : Stainless interior and exterior construction
• Lights : LED
• Electrical requirement : 115V/60hz/1ph, Unit plugs into standard wall outlet.
• Shelf quantity, type : 3 per chamber/ additional shelves available, wire shelf- PVC coated
• Weight specs : Chamber weight-210 Llbs
• Shipping weight- 254 Lbs
